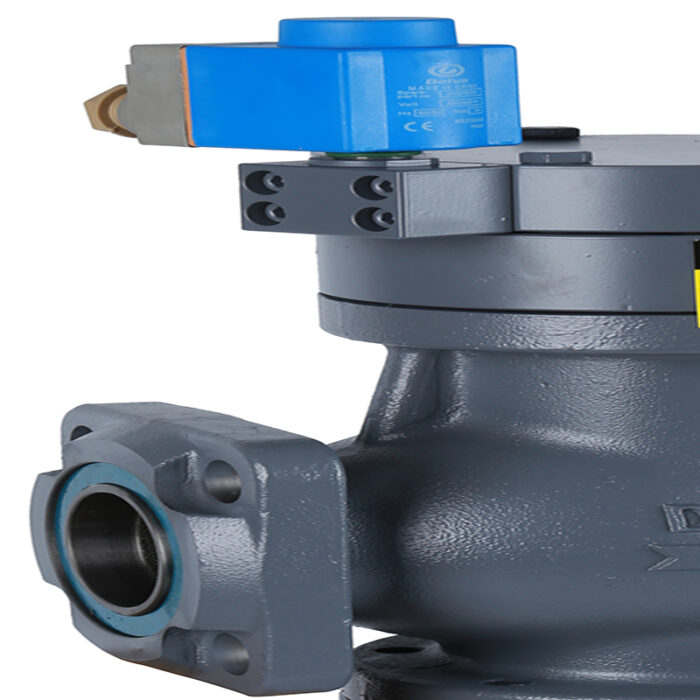

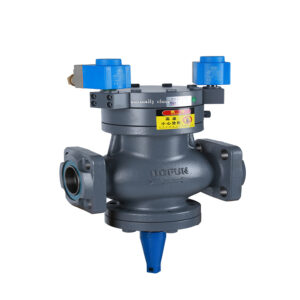

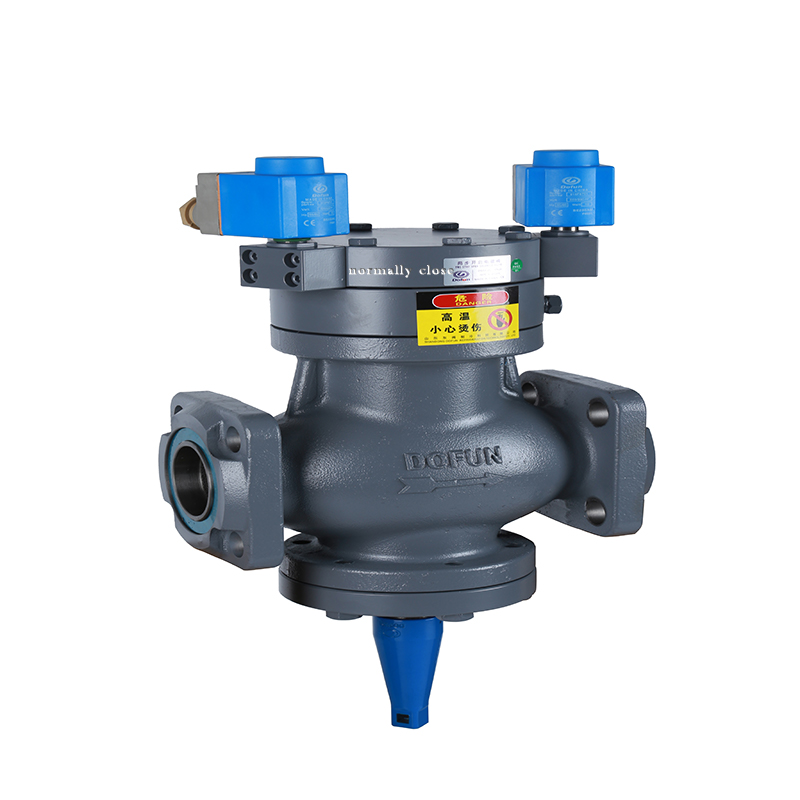

Two-Step Open Pneumatic Valve(Nomally Close) DGPV-2C Type

$657.00$2,523.00

1、 Technical Parameter

◆  Nominal Diameter: DN40-DN125

◆  Nominal Pressure: 2.8MPa

◆  Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆  Applicable Temperature: -50 ℃ ~ + 120 ℃

◆  Connection Method: flanges at both ends.

Instruction

Two-step Open Pneumatic Valve(Normally Closed),its open state is controlled by two module solenoid pilot valves in sequence, making it in three states: closed, 10% open, 100% open.In actual use, the time interval of the three states can be adjusted according to the actual situation, so as to achieve the ideal operating effect, which is suitable for the heating gas pipeline of the hot gas defrosting system.

3、 Order Goods

◆  Please tell us the model you want when ordering.

◆   E.g.:DGPV50-2C

It is means DN50 Two-step Open Pneumatic Valve(Normally Closed)

SKU: Two-Step Open Pneumatic Valve(Nomally Close) DGPV-2C Type Category:
Description

Description

1、 Technical Parameter

◆  Nominal Diameter: DN40-DN125

◆  Nominal Pressure: 2.8MPa

◆  Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆  Applicable Temperature: -50 ℃ ~ + 120 ℃

◆  Connection Method: flanges at both ends.

Instruction

Two-step Open Pneumatic Valve(Normally Closed),its open state is controlled by two module solenoid pilot valves in sequence, making it in three states: closed, 10% open, 100% open.In actual use, the time interval of the three states can be adjusted according to the actual situation, so as to achieve the ideal operating effect, which is suitable for the heating gas pipeline of the hot gas defrosting system.

3、 Order Goods

◆  Please tell us the model you want when ordering.

◆   E.g.:DGPV50-2C

It is means DN50 Two-step Open Pneumatic Valve(Normally Closed)

Two-Step Open Pneumatic Valve(Nomally Close) Two-Step Open Pneumatic Valve(Nomally Close)

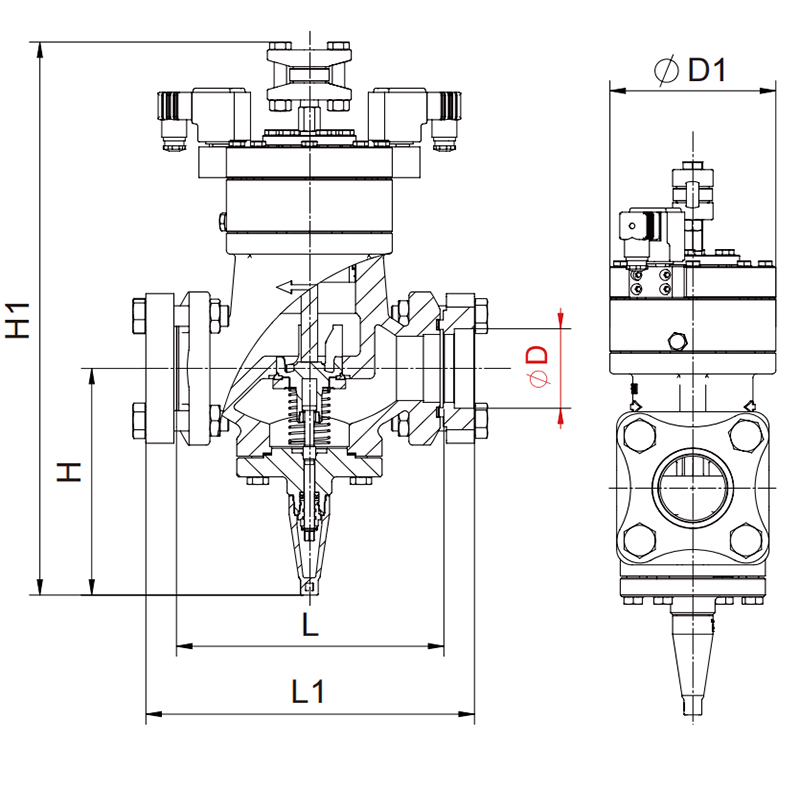

 Two-step Open Pneumatic Valve(Normally Closed)
Model Nomial Diameter

(DN)



Size

φD φD1 L L1 H H1






DGPV-2C

40 47 144 248.5 300.5 222 455
50 59 144 248.5 300.5 222 455
65 78 160 252 331 222 530
80 91 176 311 389 273 570
100 110 222 359 450 292 625
125 135 257 393.6 475.6 410 705
