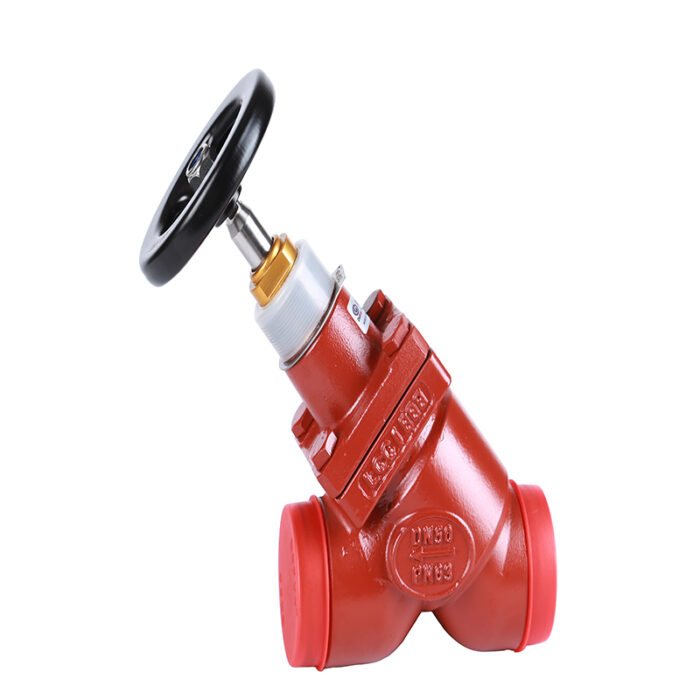

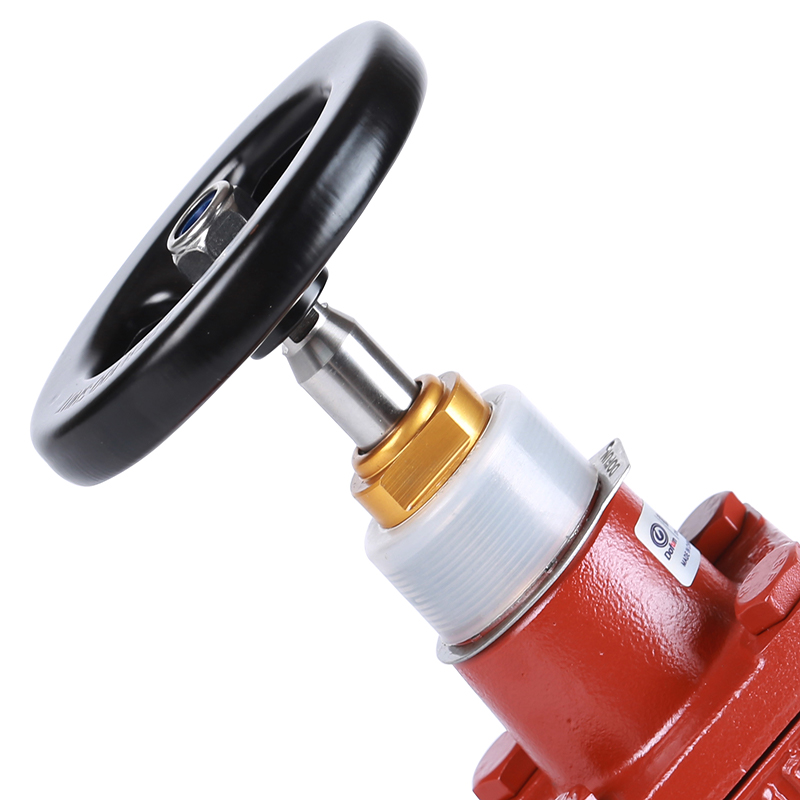

Straight Type PN63 Stop Check SCV-HS Valve

Straight Type PN63 Stop Check SCV-HS Valve

Straight Type PN63 Stop Check SCV-HS Valve - Image 2

Straight Type PN63 Stop Check SCV-HS Valve - Image 3

$40.00 – $547.00

The price is EXW price and does not include shipping costs.

Technical Parameter

◆ DN15-DN150

Nominal Diameter: DN15-DN150

◆ 6.3MPa

Nominal Pressure: 6.3MPa

◆ R12,R22,R502,R134a,R404a,R507,R717,CO2。

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.

◆ -50℃～+150℃

Applicable Temperature: -50 ℃ ～ + 150 ℃

◆ Structure Form:

Angle Type Structure’s Code is A Straight Type Structure’s Code is S

Nominal Diameter

SKU: Straight Type PN63 Stop Check Valve Category: Manual Operation Valve PN63 Tag: SCV-HS Valve

Description
Reviews (0)

Description

Description

Technical Parameter

◆ DN15-DN150

Nominal Diameter: DN15-DN150

◆ 6.3MPa

Nominal Pressure: 6.3MPa

◆ R12,R22,R502,R134a,R404a,R507,R717,CO2。

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.

◆ -50℃～+150℃

Applicable Temperature: -50 ℃ ～ + 150 ℃

◆ Structure Form:

Angle Type Structure’s Code is A Straight Type Structure’s Code is S

Straight Type PN63 Stop Check Valve

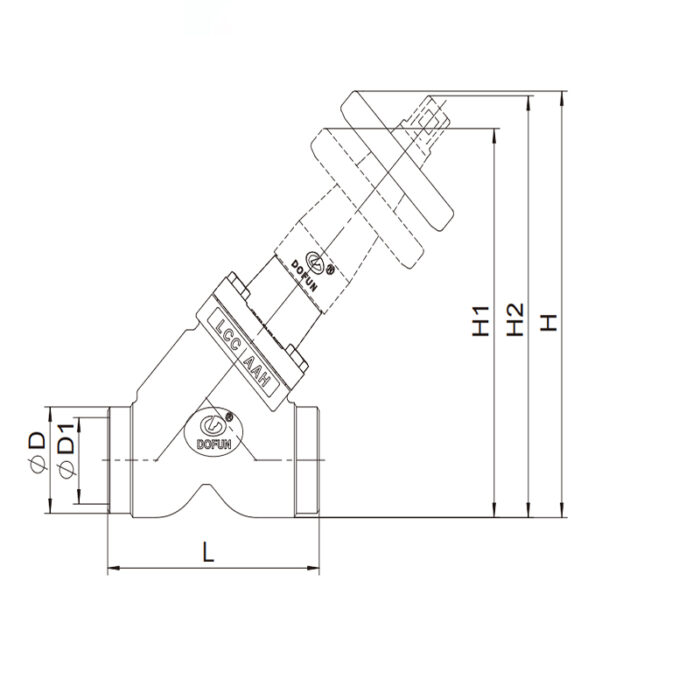

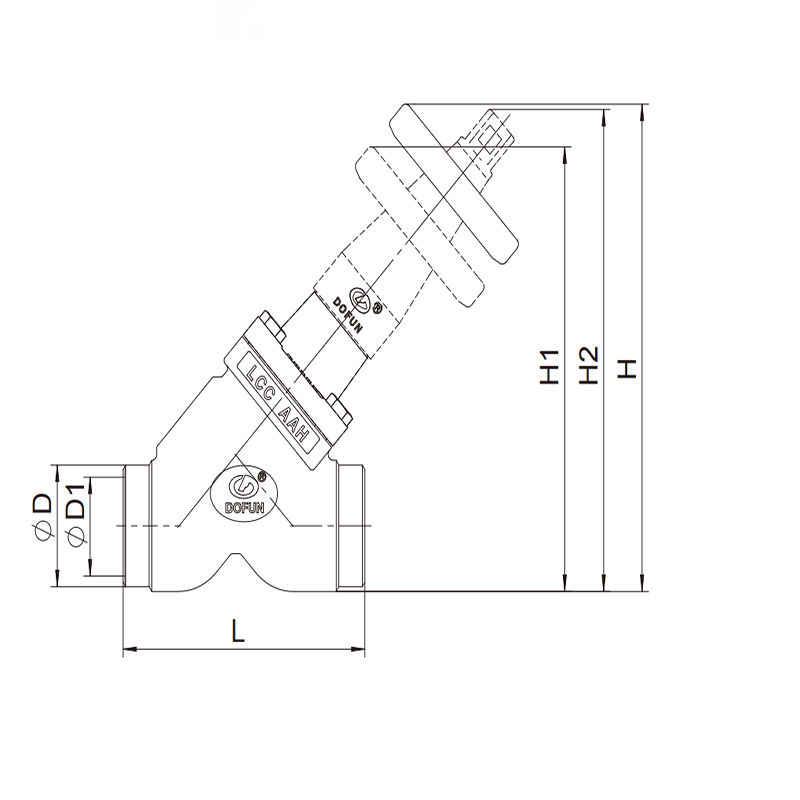

Model	Nominal Diameter (DN)	（mm）Size（mm）
Model	Nominal Diameter (DN)	ΦD-GB	ΦD-DIN	ΦD1	L	H	H1	H2
SCV-HS	15	22	21.3	15	120	175	166	174
	20	27	27	20	120	175	166	174
	25	32	33.7	25	120	175	166	174
	32	38	42.4	32	156	219	206	236
	40	45	48.3	38	156	219	206	236
	50	57	60.3	49	149	242	228	239
	65	76	76	62	176	277	259	268
	80	89	89	76	216	323	303	312
	100	108	114	96	264	380	354	353
	125	133	139.7	120	330	520	478	464
	150	159	168	150	370	570	525	513
