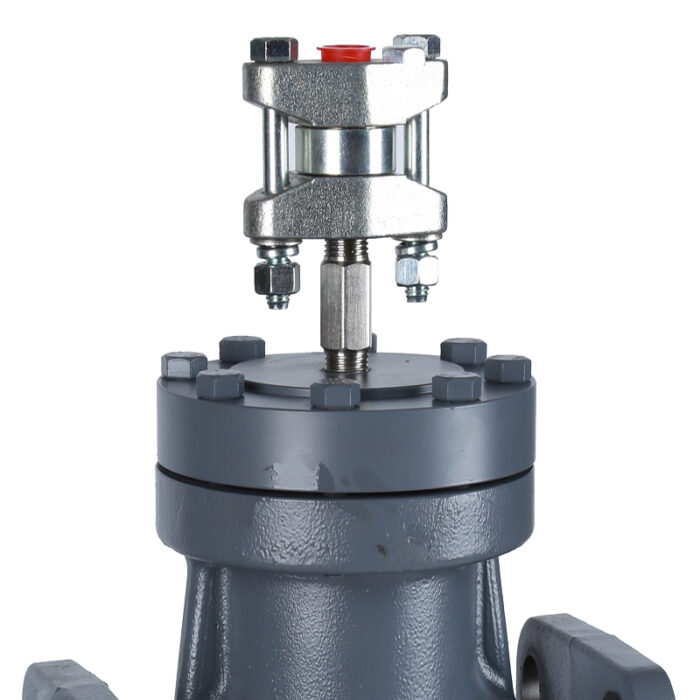

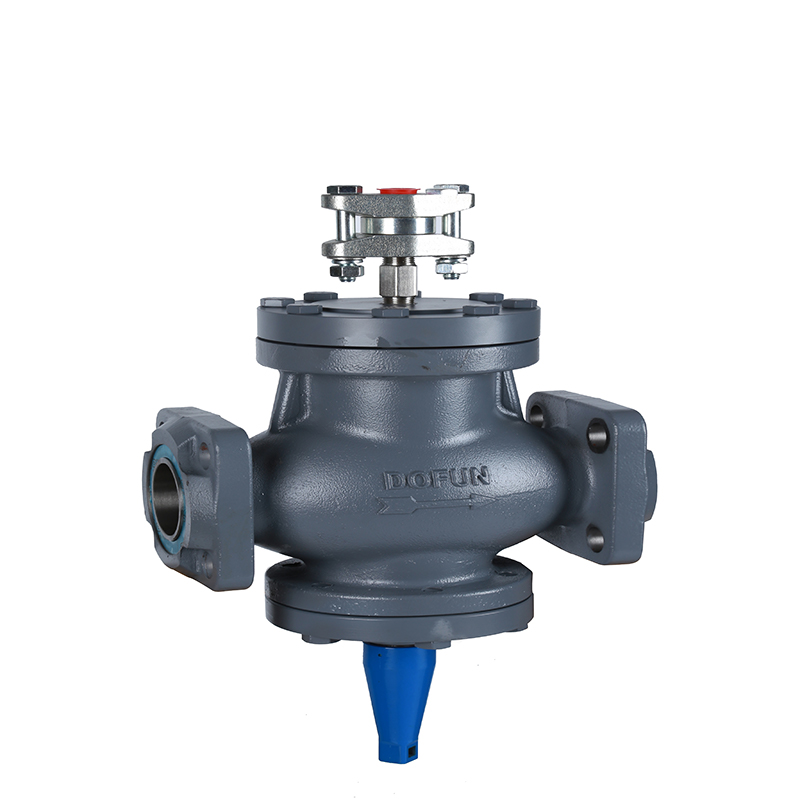

Pneumatic Solenoid Valve
$438.00 – $2,344.00
1、Technical Parameter
◆ Nominal Diameter: DN40-DN125
◆ Pressure Adjustment Range: A:0~10.3bar D:5.2~19.3bar
◆ Nominal Pressure: 2.8MPa
◆ Applicable Medium: R12, R22,R502,R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 120 ℃
◆ Connection Method: flanges at both ends.
2、Instruction
Pneumatic Solenoid Valve is a pneumatic normally open Solenoid Valve which need to connect an external gas source(high-pressure refrigerant gas). It is suitable for the return air low-pressure pipeline of the refrigeration system and the hot gas defrosting system.
3、Order Goods
◆Please tell us the model you want when ordering.
◆E.g.: DGPV40 It is means DN40Pneumatic Solenoid Valve
- Description
- Reviews (0)
Description
1、Technical Parameter
◆ Nominal Diameter: DN40-DN125
◆ Pressure Adjustment Range: A:0~10.3bar D:5.2~19.3bar
◆ Nominal Pressure: 2.8MPa
◆ Applicable Medium: R12, R22,R502,R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 120 ℃
◆ Connection Method: flanges at both ends.
2、Instruction
Pneumatic Solenoid Valve is a pneumatic normally open Solenoid Valve which need to connect an external gas source(high-pressure refrigerant gas). It is suitable for the return air low-pressure pipeline of the refrigeration system and the hot gas defrosting system.
3、Order Goods
◆Please tell us the model you want when ordering.
◆E.g.: DGPV40 It is means DN40Pneumatic Solenoid Valve

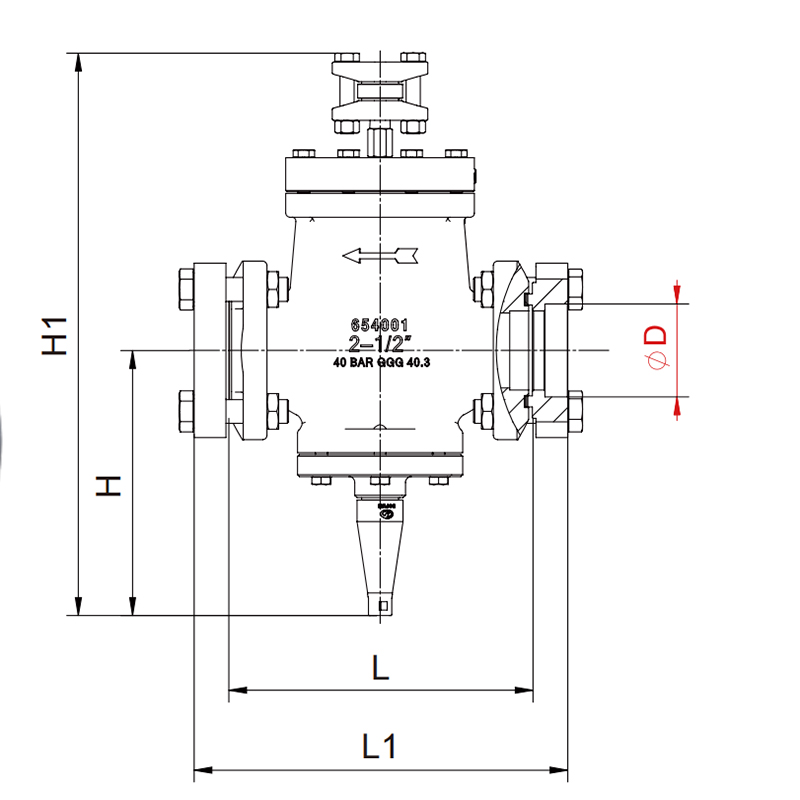

Pneumatic Solenoid Valve | ||||||
Model | Nominal Diameter
(DN) |
Size |
||||
φD | L | L1 | H | H1 | ||
DGPV |
40 | 47 | 248.5 | 300.5 | 222 | 452 |
50 | 59 | 248.5 | 300.5 | 222 | 452 | |
65 | 78 | 252 | 331 | 222 | 466 | |
80 | 91 | 311 | 389 | 273 | 500 | |
100 | 110 | 359 | 450 | 292 | 553 | |
125 | 135 | 393.6 | 475.6 | 410 | 635 |
Related products

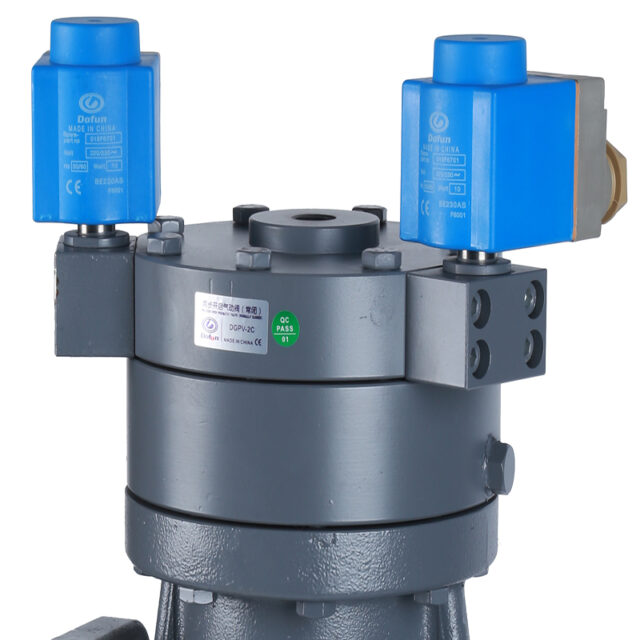

Two-Step Open Pneumatic Valve(Nomally Open)
