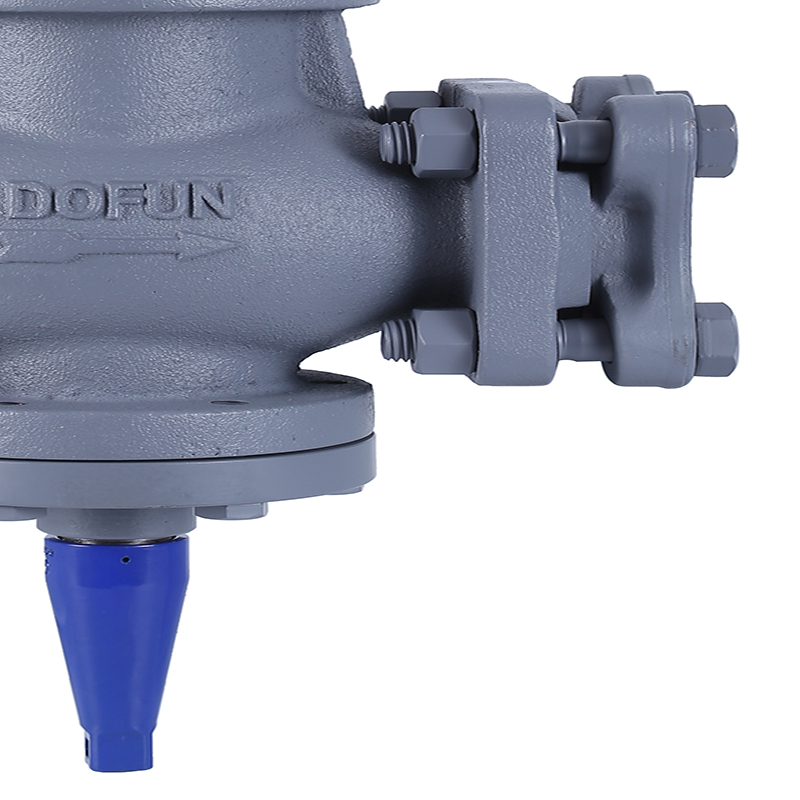

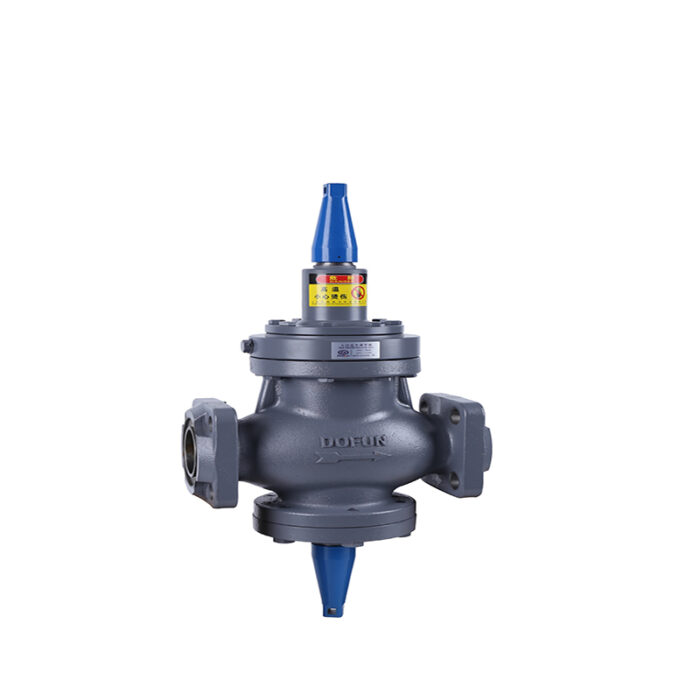

Inlet Pressure Regulating Valve IPRV
$469.00 – $2,500.00
1、Technical Parameter
◆Nominal Diameter: DN25-DN125
◆Pressure Adjustment Range: A:0～10.3bar D: 5.2～19.3bar
◆Nominal Pressure: 2.8MPa
◆Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.
Applicable Temperature: -50 ℃ ～ + 120 ℃
The product has a manual opening function to ensure the reliable operation of the system.
Connection Method: flanges at both ends.
2、 Instruction
This product is a pressure regulating valve for pressure control of evaporator, condenser pressure and other refrigeration system inlet pressure,to ensure that the pressure before the valve is lower than the pilot valve pressure setting.
3、 Order Goods
◆Please tell us the model ,set pressure value and pressure adjustment range you want when ordering.
E.g.:IPRV50-D, 9bar
It is means DN50 Inlet Pressure Regulating Valve,
Factory Setting Pressure : 9bar
Pressure Adjustment Range 5.2～
If the set pressure is not specified, the Pressure Adjustment Range is factory default 10bar, Pressure Adjustment Range is D.
Description
1、Technical Parameter
◆Nominal Diameter: DN25-DN125
◆Pressure Adjustment Range: A:0～10.3bar D: 5.2～19.3bar
◆Nominal Pressure: 2.8MPa
◆Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.
Applicable Temperature: -50 ℃ ～ + 120 ℃
The product has a manual opening function to ensure the reliable operation of the system.
Connection Method: flanges at both ends.
2、 Instruction
This product is a pressure regulating valve for pressure control of evaporator, condenser pressure and other refrigeration system inlet pressure,to ensure that the pressure before the valve is lower than the pilot valve pressure setting.
3、 Order Goods
◆Please tell us the model ,set pressure value and pressure adjustment range you want when ordering.
E.g.:IPRV50-D, 9bar
It is means DN50 Inlet Pressure Regulating Valve,
Factory Setting Pressure : 9bar
Pressure Adjustment Range 5.2～
If the set pressure is not specified, the Pressure Adjustment Range is factory default 10bar, Pressure Adjustment Range is D.

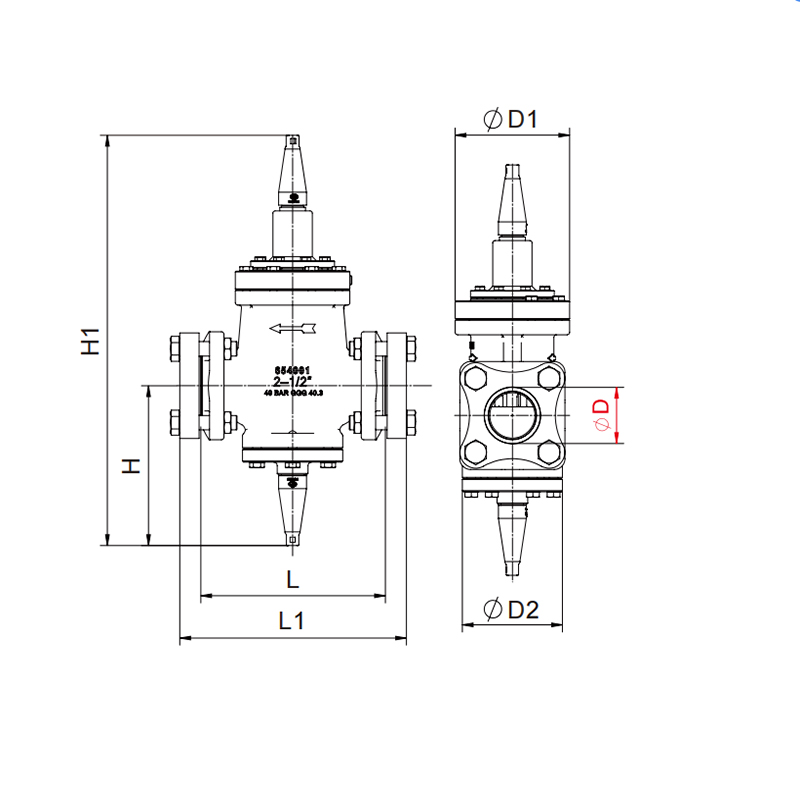

| Inlet Pressure Regulating Valve IPRV | ||||||||
|
Model |
Nomial Diameter（DN） | Size | ||||||
| φD | φD1 | φD2 | L | L1 | H | H1 | ||
|
IPRV |
25 | 34 | 117 | 108 | 194 | 231 | 205 | 488 |
| 32 | 40 | 117 | 108 | 194 | 231 | 205 | 488 | |
| 40 | 47 | 144 | 140 | 248.5 | 300.5 | 222 | 552 | |
| 50 | 59 | 144 | 140 | 248.5 | 300.5 | 222 | 552 | |
| 65 | 78 | 159 | 140 | 252 | 331 | 222 | 566 | |
| 80 | 91 | 176 | 170 | 311 | 389 | 273 | 600 | |
| 100 | 110 | 222 | 195 | 359 | 450 | 292 | 653 | |
| 125 | 135 | 257 | 235 | 393.6 | 475.6 | 410 | 735 | |
Related products
Differential Pressure Regulating DPAV-1N Valve(Solenoid Fully Open)
$610.00 – $2,641.00
Differential Pressure Regulating Valve
$547.00 – $2,579.00

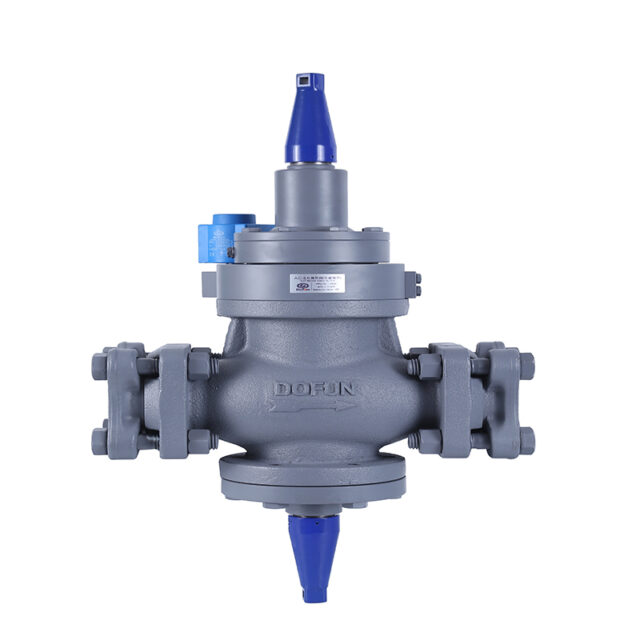

Inlet Pressure Regulating Valve（Solenoid Forced Open）
