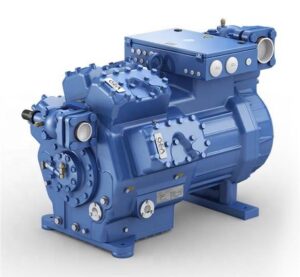

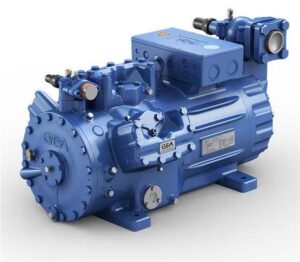

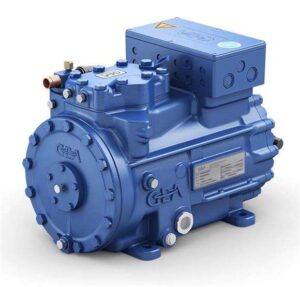

Gea bock 5HP HG34e/215-4S open type 3 phase refrigerator compressor
BOCK, HG34e/215-4, Semi-Hermetic Compressor:Refrigerants: R22,
Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz,
Applications: MBP,
Oil type: BOCKlub A46,
Anti-vibration pads: No, 16050
Refrigerant:
Downloads:

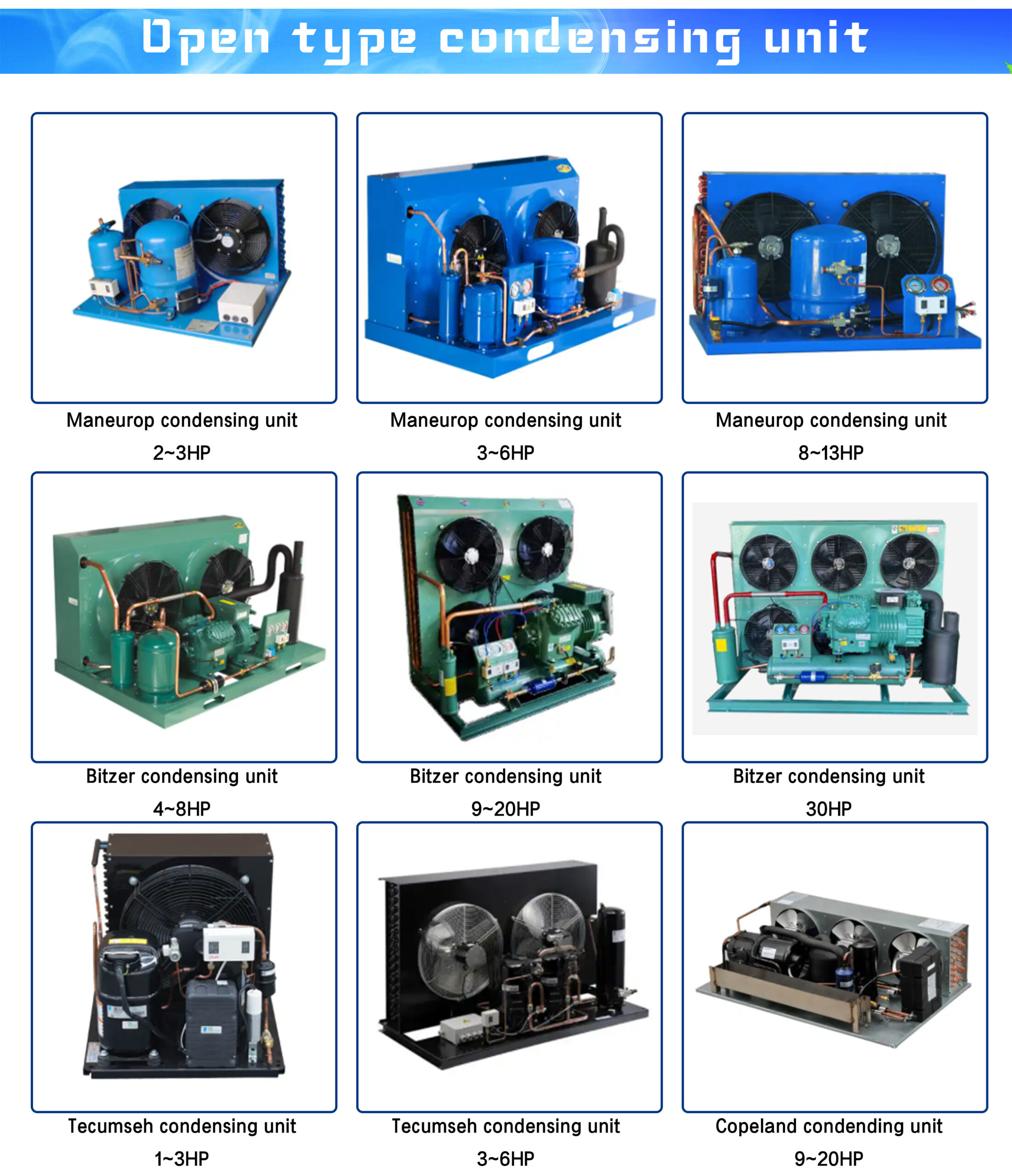

About the Condensing unit:

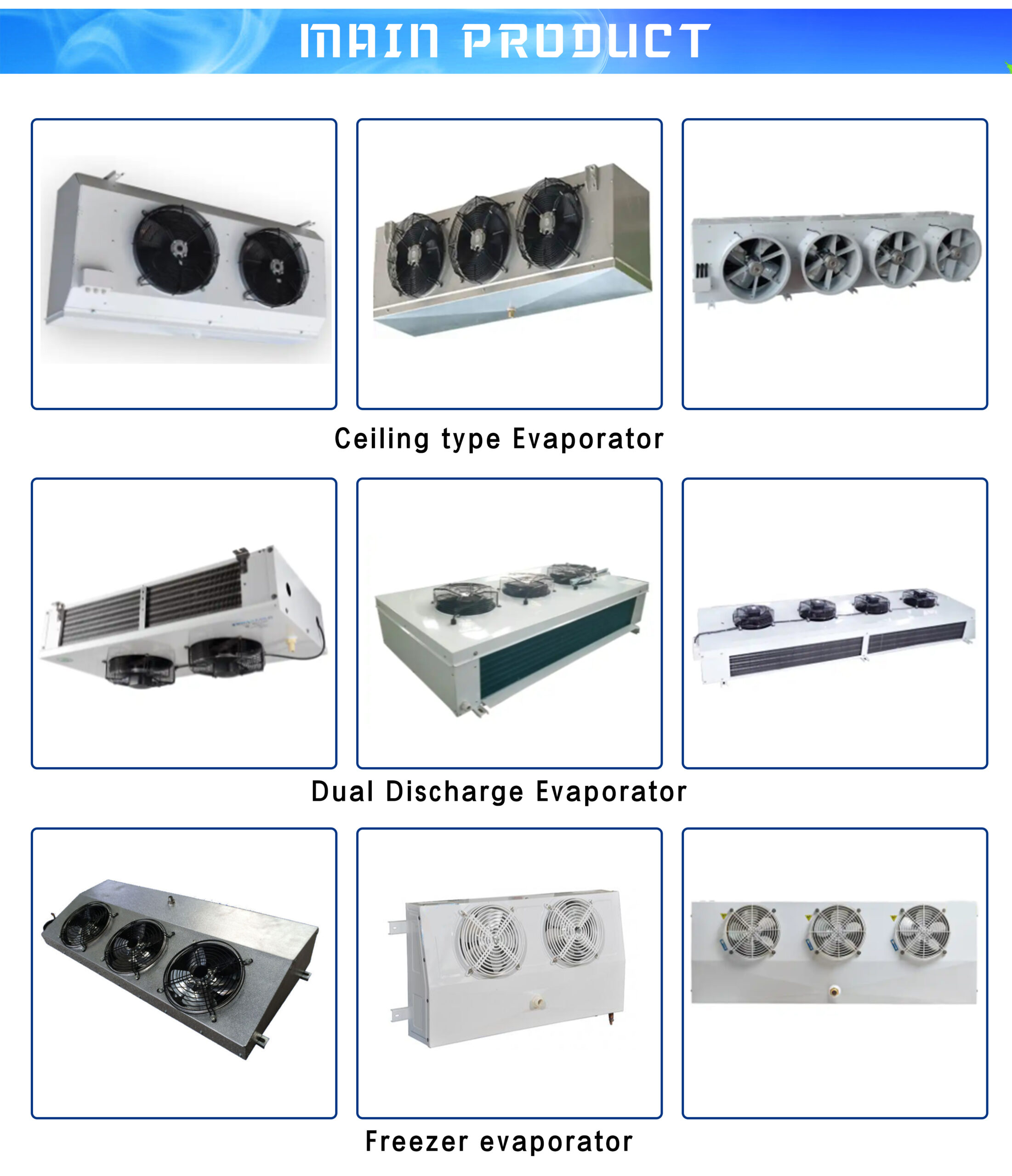

Condensing unit, unit cooler and air cooled condenser are three main refrigeration equipments to keep cold room system in controlled temperature. As the professional condensing unit, unit cooler and air cooled condenser manufacturers, wholesalers and suppliers, CASGYW had been dedicated in supplying custom condensing unit, unit cooler and air cooled condenser products and one stop cold room solution and services to worldwide customers since its foundation in 2009. We have over 15 professional cold room experts and 10,000 square meters factory. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to be your partner.
Downloads & Price Lists: Wechat ID: 16605196699
Description
Description
| Model | Power | Displacement | Temperature | Motor Power |
Package size | Cooling capacity(kw) |
Weight (kg) |
| HG22e/160-4S | 3HP | 013.8m3/h | -10-+10℃ | 2.1kw | 468x240x315 | 1.3-14.6 | 76 |
| HG22e/190-4S | 4HP | 16.8m3/h | -10-+10℃ | 2.9kw | 468x240x315 | 1.2-17.8 | 75 |
| HG34e/215-4S | 5HP | 18.4m3/h | -10-+10℃ | 3.8kw | 535×272×273 | 1.4-20.2 | 97 |
| HG34e/255-4S | 6HP | 22.7m3/h | -10-+10℃ | 4.5kw | 535x272x273 | 3.0-23.8 | 96 |
| HG34e/315-4S | 7HP | 26.8m3/h | -10-+10℃ | 5.1kw | 535×272×273 | 3.9-28.7 | 97 |
| HG34e/380-4S | 10HP | 34.8m3/h | -10-+10℃ | 7.5kw | 535×272×273 | 4.96-34.6 | 96 |
| HG44e/475-4S | 12HP | 41.3m3/h | -10-+10℃ | 8.8kw | 535×272×273 | 6.7-45.2 | 170 |
| HG44e/565-4S | 15HP | 48.6m3/h | -10-+10℃ | 11kw | 535×272×273 | 8.3-54.0 | 173 |
| HG44e/665-4S | 20HP | 56.5m3/h | -10-+10℃ | 15kw | 535×272×273 | 9.2-62.7 | 171 |
| HG44e/770-4S | 25HP | 73.4m3/h | -10-+10℃ | 18kw | 535x272x273 | 11.1-72.6 | 171 |
| HG56e/995-4S | 30HP | 84.6m3/h | -10-+10℃ | 22kw | 740x350x429 | 13.4-94.3 | 211.3 |
| HG56e/1155-4S | 35HP | 111m3/h | -10-+10℃ | 26kw | 740x350x429 | 16.6-109.0 | 220.6 |
| HG66e/1540-4S | 40HP | 126.8m3/h | -10-+10℃ | 29kw | 870x460x460 | 20.2-139.7 | / |
| HG22e/190-4 | 3HP | 16.6m3/h | -15–35℃ | 2.1kw | 468x240x315 | 1.23-17.8 | 74 |
| HG34e/215-4 | 3HP | 18.1m3/h | -15–35℃ | 2.1kw | 535x272x273 | 1.4-20.2 | 92 |
| HG34e/255-4 | 4HP | 22.8m/h | -15–35℃ | 2.9kw | 535x272x273 | 3.0-23.8 | 92 |
| HG34e/315-4 | 5HP | 26.8m/h | -15–35℃ | 3.8kw | 535x272x273 | 3.9-28.7 | 94 |
| HG34e/380-4 | 6HP | 32.8m/h | -15–35℃ | 4.5kw | 535x272x273 | 5.0-34.6 | 93 |
| HG44e/475-4 | 8HP | 41.5m3/h | -15–35℃ | 5.9kw | 535x272x273 | 6.7-45.2 | 165 |
| HG44e/565-4 | 10HP | 48.8m3/h | -15–35℃ | 7.5kw | 535x272x273 | 8.3-54.0 | 166 |
| HG44e/665-4 | 12HP | 56.7m3/h | -15–35℃ | 8.8kw | 535x272x273 | 9.2-62.7 | 174 |
| HG44e/770-4 | 15HP | 73.7m3/h | -15–35℃ | 11kw | 535x272x273 | 11.1-72.6 | 171 |
| HG56e/995-4 | 20HP | 84.6m/h | -15–35℃ | 15kw | 740x350x429 | 13.4-94.3 | 208 |
| HG56e/1155-4 | 25HP | 110.7m³/h | -15–35℃ | 18kw | 740x350x429 | 16.6-109.0 | 211.8 |
| HG66e/1540-4 | 30HP | 126.8m/h | -15–35℃ | 22kw | 870x460x460 | 20.2-139.7 | / |
| HG66e/1750-4 | 40HP | 151.6m/h | -15–35℃ | 29kw | 870x460x460 | 23.5-157 |
BOCK, HG34e/215-4, Semi-Hermetic Compressor :Data Sheet
| Power supply | 220/240 V-380/420 V-50 Hz-3 ph (265/290 V-440/480 V-60 Hz-3 ph) Δ Y |
|---|---|
| Horsepower | 7,50 hp |
| Displacement | 27,30 m3 |
| Cooling capacity at Refrigeration conditions, R407C | 14,15 kW |
| Cooling capacity at Refrigeration conditions, R404A | 16,15 kW |
| Refrigerant | R134a, R404A, R407C, R407F, R448A, R449A, R507, R513A |
| Suction pipe | 1 1/8″ |
| Discharge pipe | 7/8″ |
| Weight | 97 kg |
| LRA (Δ/y) | 132/76 A |
| MCC (Δ/y) | 25,5/14,7 A |
| Type of oil | FUCHS Reniso Triton SE 55 |
| Other remarks | Available in ATEX version, Electronic frequency control (20-70 Hz), Equipped with oil pump without connections to the differential oil pressure switch |
| Accessories | Control Capacity 50/100%, Crankcase heater 50-120 W, Start unloader, Thermal protection thermostat (PTC sensor) |
| Application | MHBP |
| Technology | Fixed speed |
| Previous version | HGX34P/315-4S |
| Lubrication mode | Oil pump |
| Low pressure design | 19 bar |
| High pressure design | 28 bar |
| Type of motor cooling | Suction gas |
| Protection type | IP 66 |
| Motor protection type | INT69 G |
| Speed | 1450 rpm |
