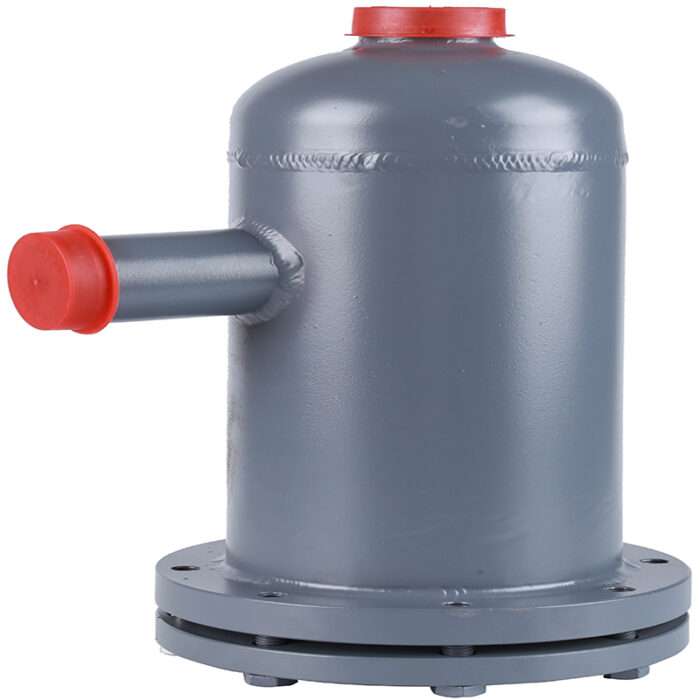

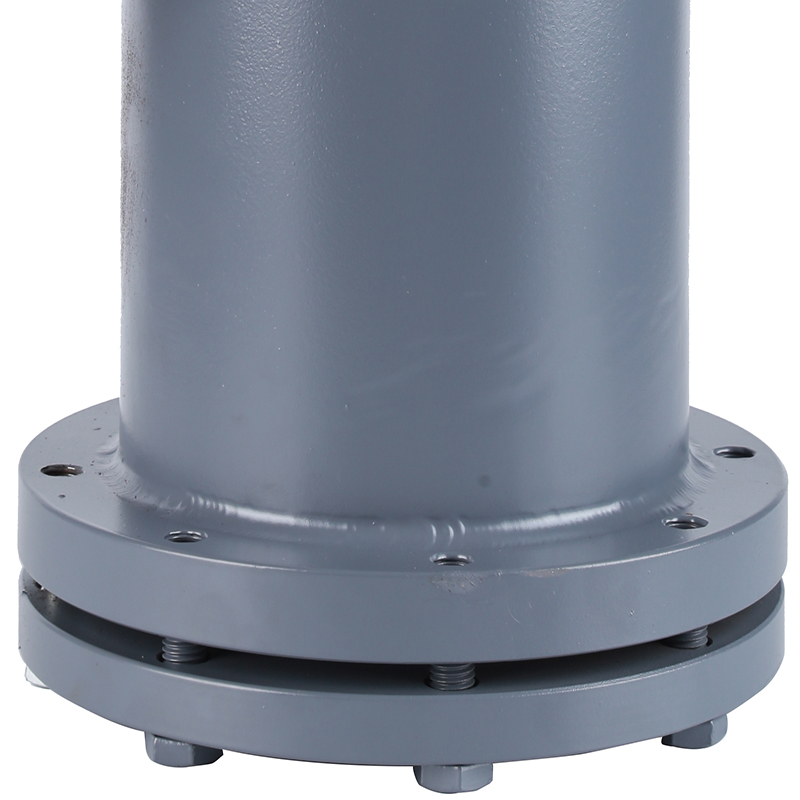

Cartridge Filter CFVD for cold storage
$43.00 – $313.00
1、 Technical Parameter
◆ Nominal Diameter: DN15-DN80
◆ Nominal Pressure: 2.5MPa
◆ Applicable Medium: Ammonia,Fluorine and other refrigerants.
◆Applicable Temperature: -50 ℃ ～ + 150 ℃
◆The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh,
38 mesh, which can be selected according to the requirements of
different pipeline.
2、 Instruction
CFVD filters are used in front of Solenoid Valves,pressure regulating valve
and other automatic control valves or equipment to prevent the wear of
valves and equipment by impurities
3、Order Goods
◆Please tell us the model you want when ordering.
◆E.g:CFVD32 It is means DN32 Cartridge Filter
Description
1、 Technical Parameter
◆ Nominal Diameter: DN15-DN80
◆ Nominal Pressure: 2.5MPa
◆ Applicable Medium: Ammonia,Fluorine and other refrigerants.
◆Applicable Temperature: -50 ℃ ～ + 150 ℃
◆The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh,
38 mesh, which can be selected according to the requirements of
different pipeline.
2、 Instruction
CFVD filters are used in front of Solenoid Valves,pressure regulating valve
and other automatic control valves or equipment to prevent the wear of
valves and equipment by impurities
3、Order Goods
◆Please tell us the model you want when ordering.
◆E.g:CFVD32 It is means DN32 Cartridge Filter

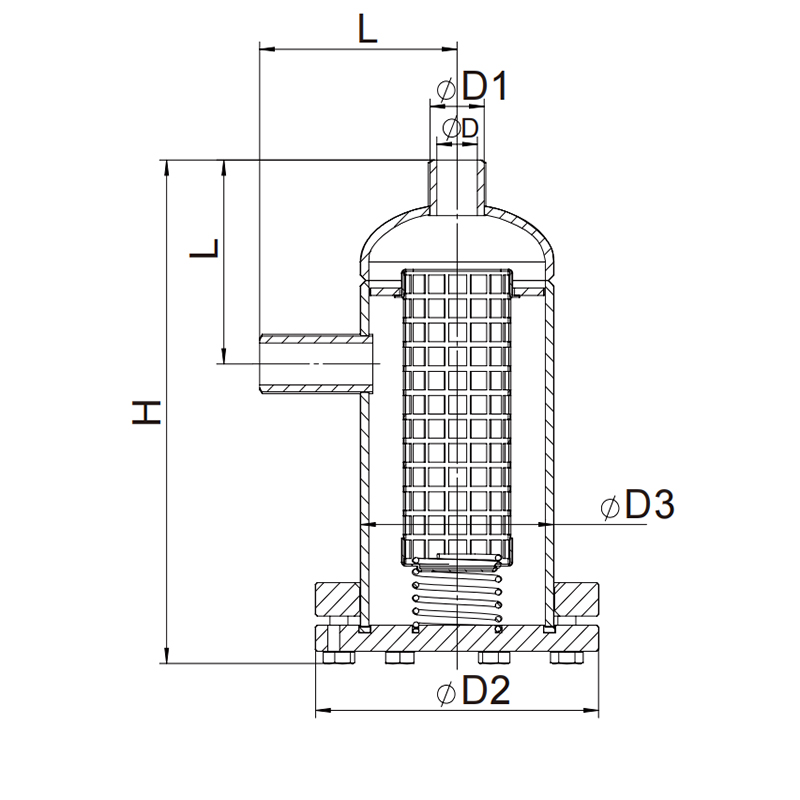

| CFVD Cartridge Filter CFVD Type | ||||||||
| Model | Nominal Diameter (DN) | （mm）Size（mm） | Connectin | |||||
|
ΦD |
ΦD1 |
ΦD2 |
L |
H |
||||
| GB | DIN | |||||||
|
CFVD |
15 | 15 | 22 | 21.3 | 150 | 110 | 270 |
Butt welding |
| 20 | 20 | 27 | 27 | 150 | 110 | 270 | ||
| 25 | 25 | 32 | 33.7 | 150 | 110 | 270 | ||
| 32 | 32 | 38 | 42.4 | 150 | 110 | 270 | ||
| 40 | 38 | 45 | 48.3 | 180 | 140 | 345 | ||
| 50 | 49 | 57 | 60.3 | 180 | 140 | 345 | ||
| 65 | 62 | 76 | 76 | 180 | 140 | 345 | ||
| 80 | 80 | 89 | 89 | 180 | 140 | 345 | ||
| 100 | 100 | 108 | 114.3 | 210 | 145 | 410 | ||
| 125 | 124 | 133 | 139.7 | 240 | 155 | 475 | ||
| 150 | 150 | 159 | 168.3 | 285 | 180 | 525 | ||
