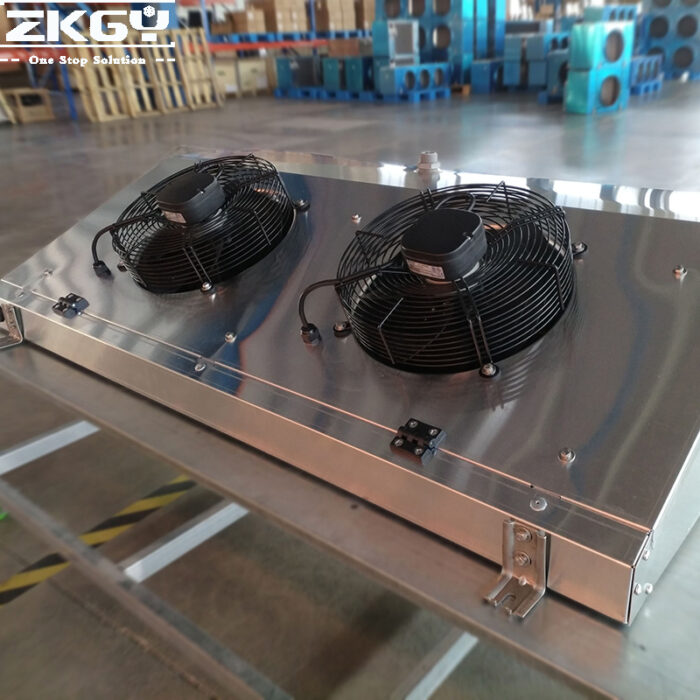

Angled Unit Cooler
High Profile Unit Cooler:
High grade evaporative oil is utilized in fin punching process
which can ensure an oil-free coil. Perfect tube expanding and
fin collar process ensure the same heat transfer efficiency
during the whole life cycle.

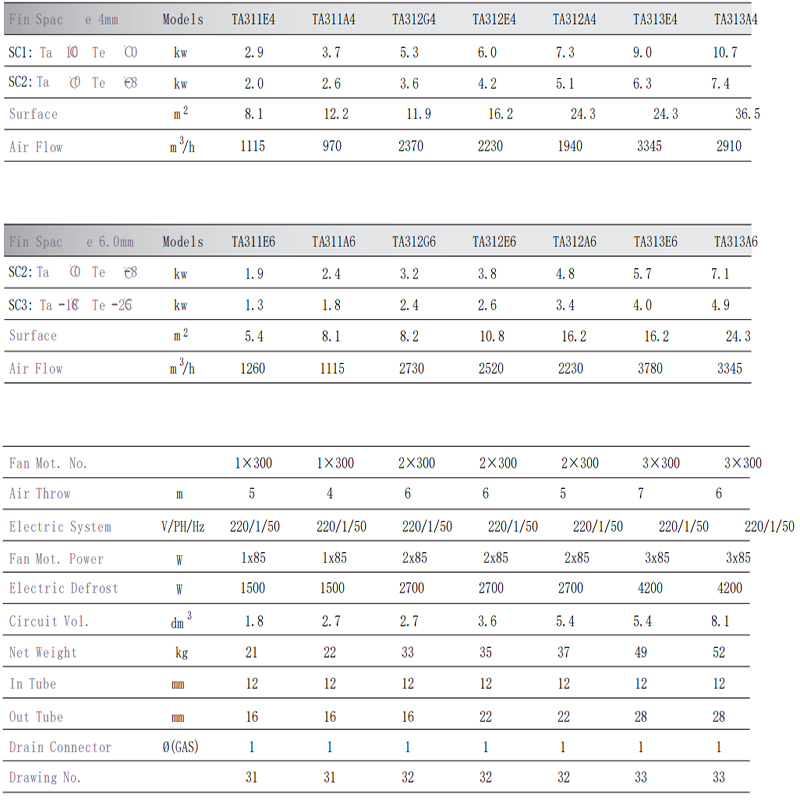

Capacity:
High Temperature:-8°C-10°C
Low Temperature:-25°C-18°C
Application Area：
Notice：
| Quantity(Units) | 1 – 100 | 101 – 500 | >500 |
| Est. Time(days) | 10 | 20 | To be negotiated |
No stock, production cycle 10-15 days
Description
1、All the supporting and end plate are made by Al Alloy, Unique floating tube design makes the coil leakage free and suitable for hot-gas defrost.
2、Middle panel to separate the fan motors are equipped as standard to avoid the possibility of “air leakage” and failure when one of the fan motors can not work.
3、High grade evaporative oil is utilized in fin punching process which can ensure an oil-free coil. Perfect tube expanding and fin collar process ensure the same heat transfer efficiency during the whole life cycle.
Feature
1. Made of steel plate, the surface coating, corrosion resistance.
2. With beatuiful appearance
3. With excellent heat exchange effect
4. Water frosting to ensure quick defrosting.
Application
1.D serial air cooler can match with different capacity condensing equipments; it can apply to different temperature cold rooms.
2.Dl serial can apply to 0°C cold room, storage such as egg or vegetable.
3.DD apply to -18°C cold room, storage meat, fish.
4.DJ apply to -25°C cold room for freezing or fast freezing the fresh meat and fish
