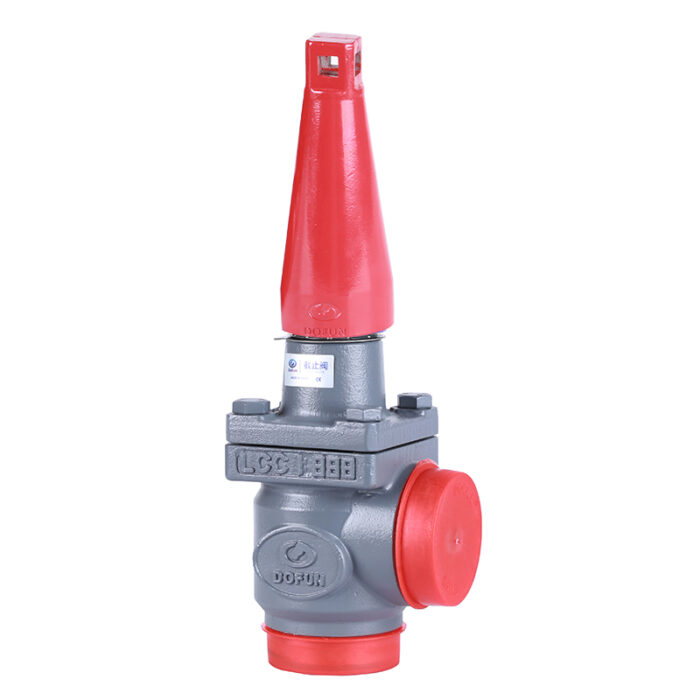

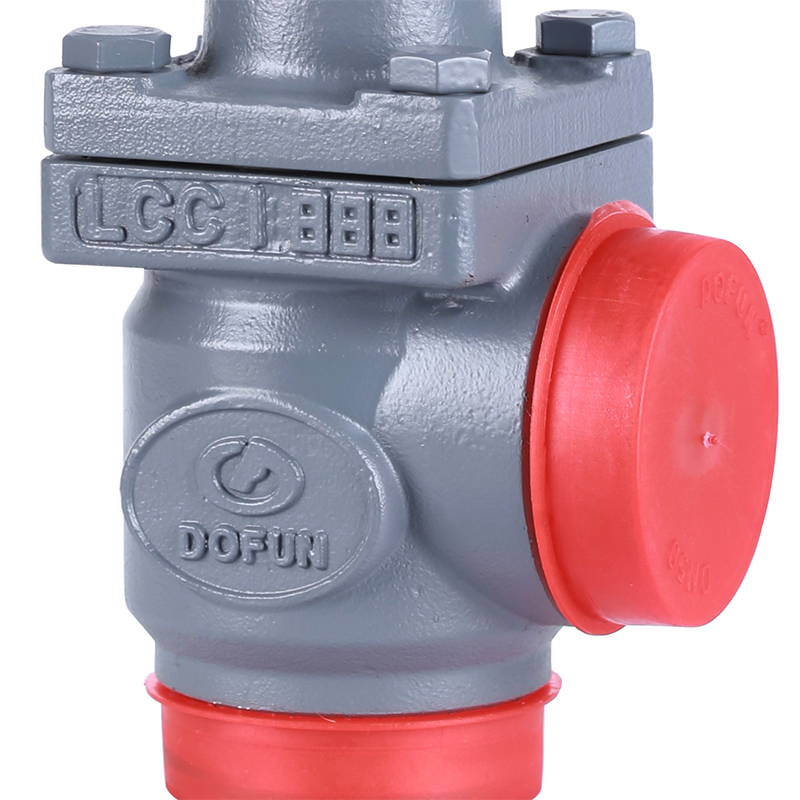

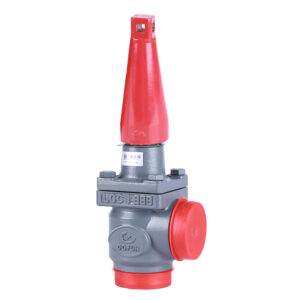

Angle Type Regulating Valve
Sale!
$25.00 – $250.00
1、Technical Parameter
◆ Nominal Diameter: DN15-DN125
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ Structure Form:
Angle Type Structure code is A
Description
Description
1、Technical Parameter
◆ Nominal Diameter: DN15-DN125
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ Structure Form:
Angle Type Structure code is A

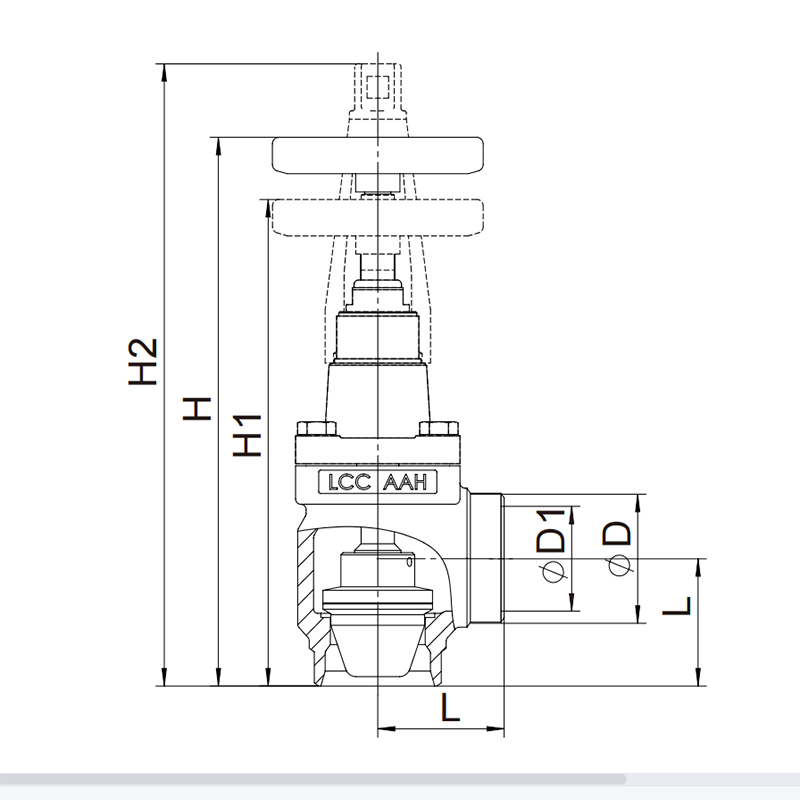

| Angle Type Regulating Valve | ||||||||
| Model |
Nominal Diameter (DN) |
Size（mm） | ||||||
| ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
|
TVD-A |
15 | 22 | 21.3 | 15 | 45 | 203 | 189 | 230 |
| 20 | 27 | 27 | 20 | 45 | 203 | 189 | 230 | |
| 25 | 32 | 33.7 | 25 | 45 | 203 | 189 | 230 | |
| 32 | 38 | 42.4 | 32 | 56 | 265 | 247 | 309 | |
| 40 | 45 | 48.3 | 38 | 56 | 265 | 247 | 309 | |
| 50 | 57 | 60.3 | 49 | 60 | 257 | 237 | 292 | |
| 65 | 76 | 76 | 62 | 90 | 287 | 263 | 324 | |
| 80 | 89 | 89 | 76 | 106 | 328 | 300 | 378 | |
| 100 | 108 | 114 | 96 | 121 | 368 | 331 | 414 | |
| 125 | 133 | 139.7 | 120 | 133 | 502 | 442 | 554 | |
