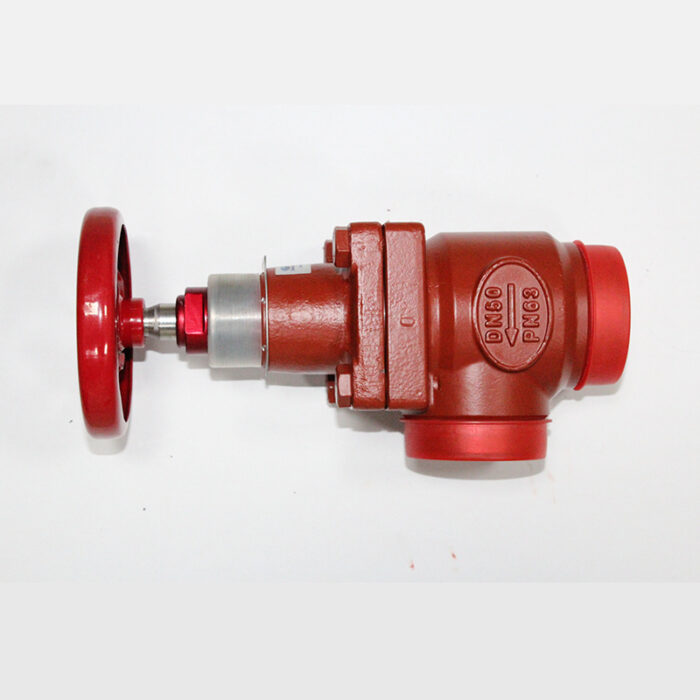

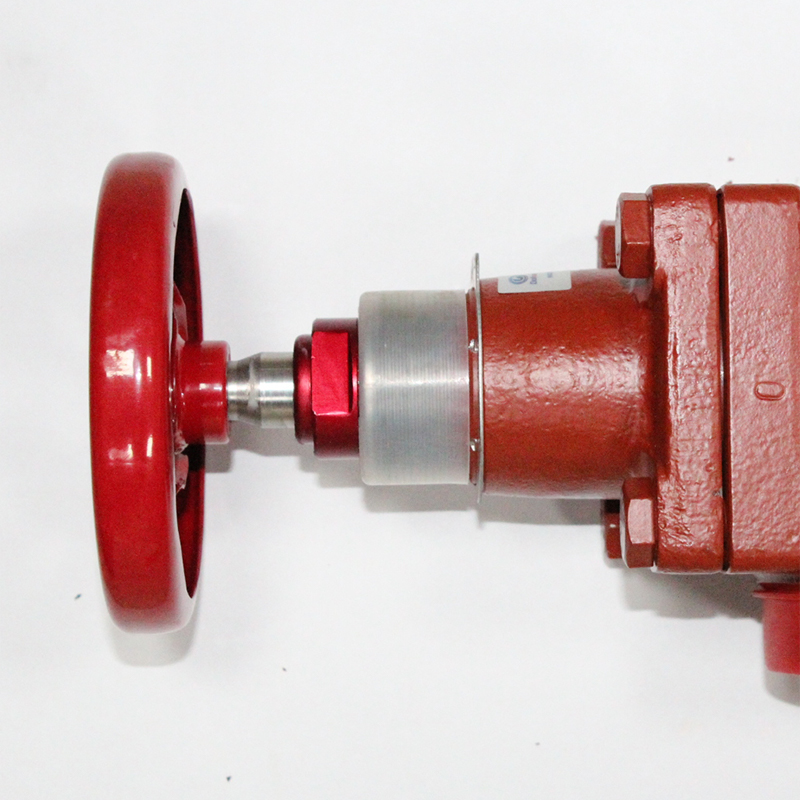

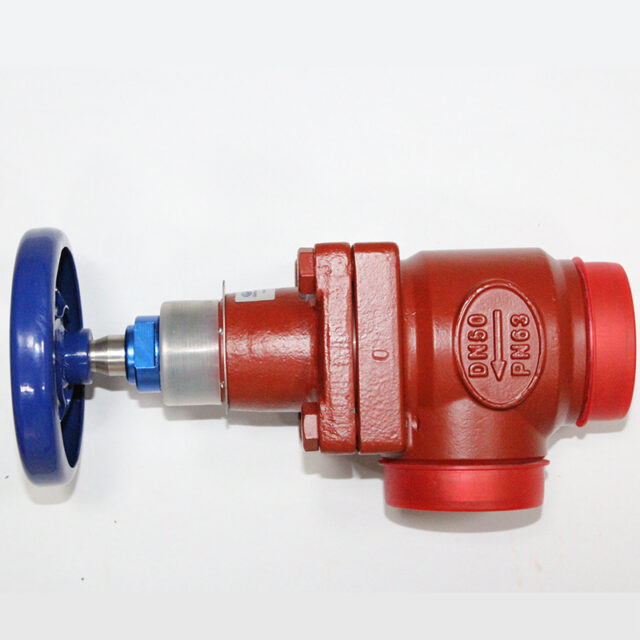

Angle Type PN63 Regulating TVD-HA Valve
$33.00 – $313.00
The price is EXW price and does not include shipping costs.
1、Technical Parameter
◆ Nominal Diameter: DN15-DN125
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 150 ℃
◆ Structure Form:
Angle Type Structure’s Code is A
- Description
- Reviews (0)
Description
Description
1、Technical Parameter
◆ Nominal Diameter: DN15-DN125
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 150 ℃
◆ Structure Form:
Angle Type Structure’s Code is A

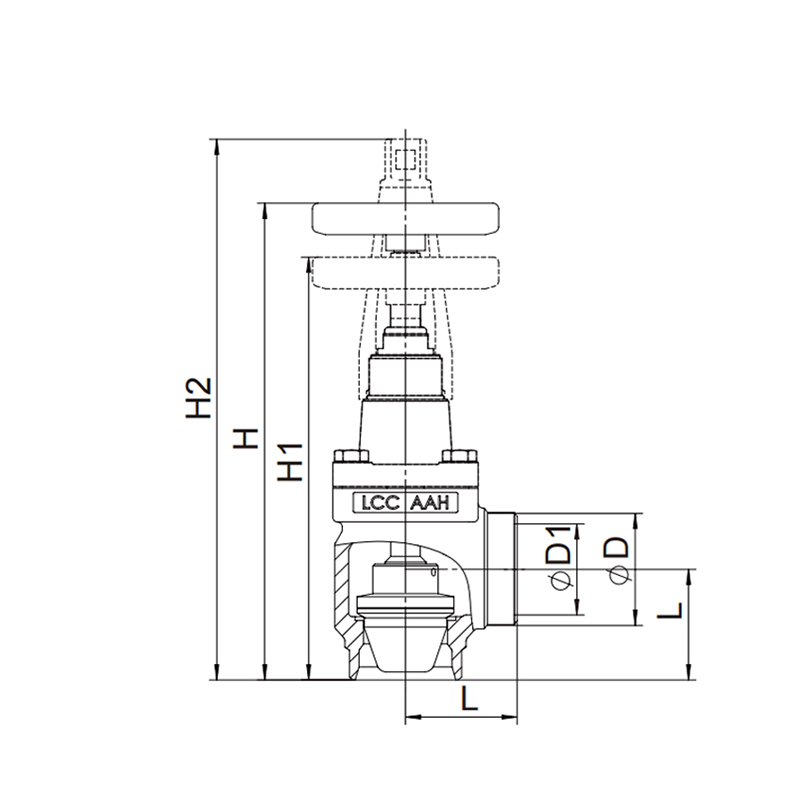

Angle Type PN63 Regulating Valve | ||||||||
Model | Nominal Diameter (DN) | Size(mm) | ||||||
ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
TVD-HA |
15 | 22 | 21.3 | 15 | 45 | 203 | 189 | 230 |
20 | 27 | 27 | 20 | 45 | 203 | 189 | 230 | |
25 | 32 | 33.7 | 25 | 45 | 203 | 189 | 230 | |
32 | 38 | 42.4 | 32 | 56 | 265 | 247 | 309 | |
40 | 45 | 48.3 | 38 | 56 | 265 | 247 | 309 | |
50 | 57 | 60.3 | 49 | 60 | 257 | 237 | 292 | |
65 | 76 | 76 | 62 | 90 | 287 | 263 | 324 | |
80 | 89 | 89 | 76 | 106 | 328 | 300 | 378 | |
100 | 108 | 114 | 96 | 121 | 368 | 331 | 414 | |
125 | 133 | 139.7 | 120 | 133 | 502 | 442 | 554 |
Reviews (0)
Be the first to review “Angle Type PN63 Regulating TVD-HA Valve” Cancel reply
Related products

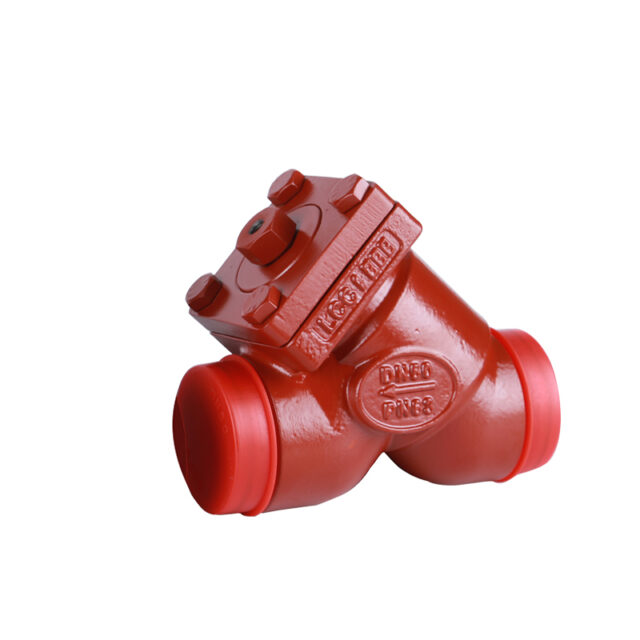

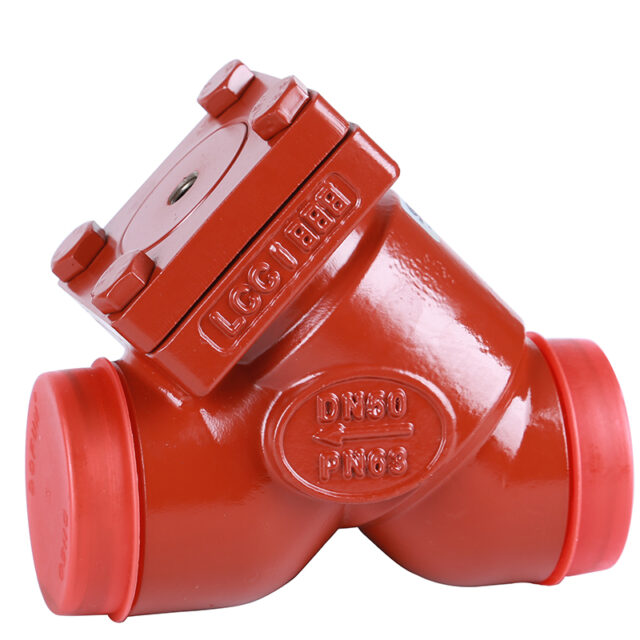

Angle Type PN63 Filter FVD-HA Vavle
$31.00 – $478.00

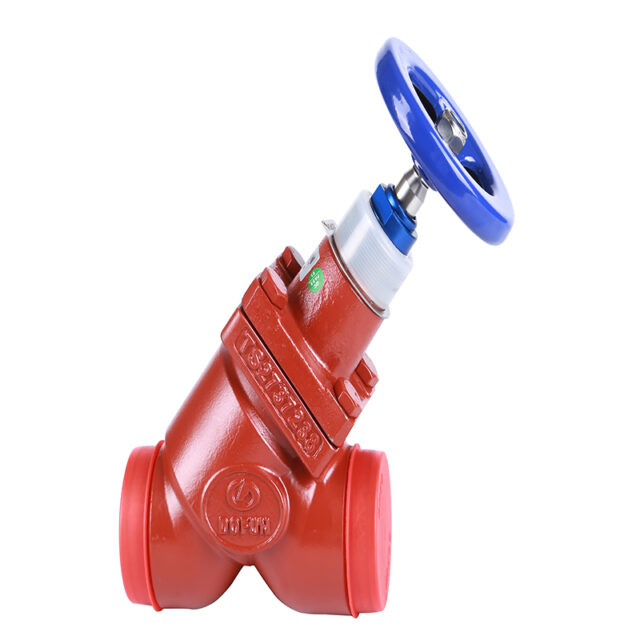

Straight Type PN63 Regulating TVD-HS Valve
$33.00 – $329.00
Angle Type PN63 Stop Check SCV-HA Valve
$40.00 – $532.00

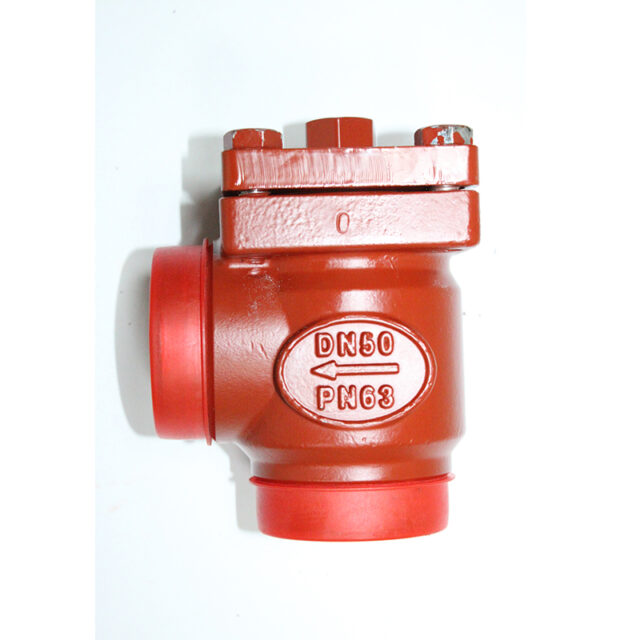

Angle Type PN63 Check CVD-HA Valve
