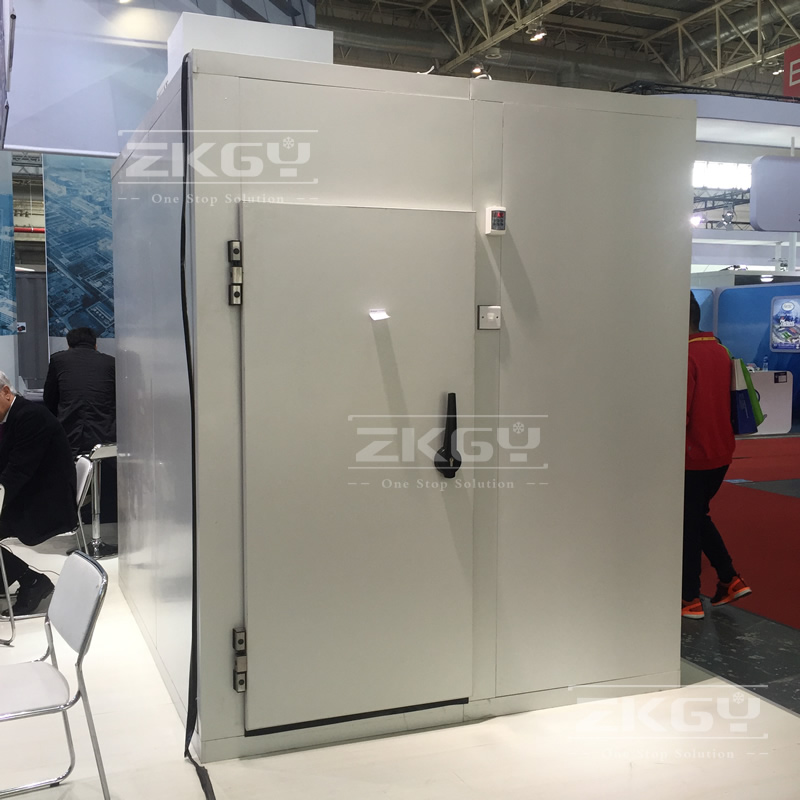

Cold Room Hinged Door

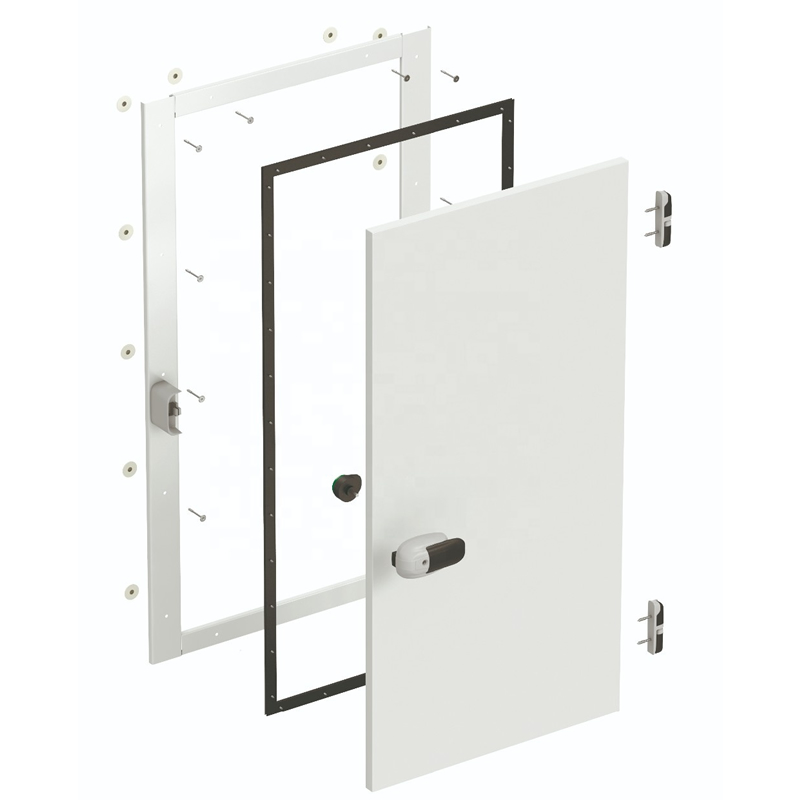

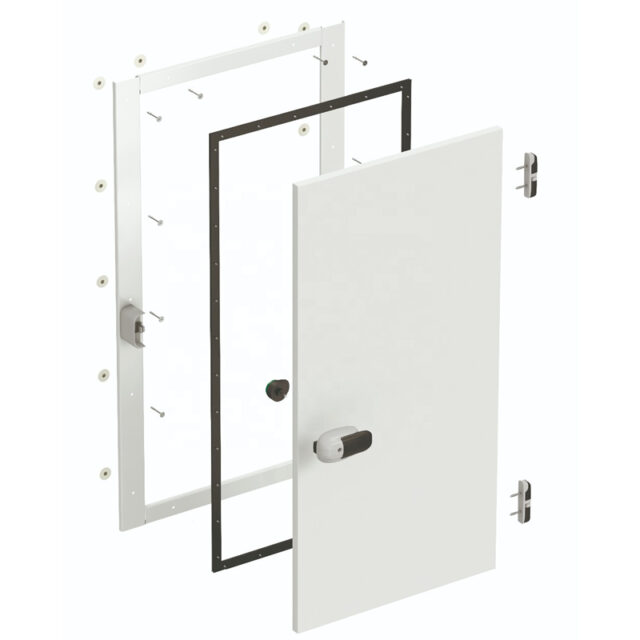

Cold Room Hinged Door designed and manufactured by GYW is widely used for cold rooms or freezer rooms from temperatures of -36° C to normal operating temperatures. Cold room hinged door panels are seamlessly joined together by means of tongue and groove, they are locked together by cam-lock on each side of the panel to ensure air tight joints. Cam-lock design fastener to install with the cold room tightly and strongly. The cold room door panel with thickness of 100mm or 150mm is commonly applied. All our cold room doors are made with the CFC-free insulated PU panel covered with stainless steel or galvanized steel that meet EC/USDA international hygiene standards.
Hinged door is made by plastic material and surface metal, with environmental PU of high density and fire resistance foaming inside, it has good sealing, and easy to install, so it is usually used for small cold room. Customers can choose hinged door of half buried or all buried depending on the situation of cold room, and also can choose different sizes. Common size of cold room hinged door is 700mm*1700mm, 800mm*1800mm, 1000mm*2000mm. If the height of cold room hinged door is more than 2 meters, it will be installed 3 or 4 hinges to make it stable.
Cold Room Hinged Door designed and manufactured by GYW is widely used for cold rooms or freezer rooms from temperatures of -36° C to normal operating temperatures. Cold room hinged door panels are seamlessly joined together by means of tongue and groove, they are locked together by cam-lock on each side of the panel to ensure air tight joints. Cam-lock design fastener to install with the cold room tightly and strongly. The cold room door panel with thickness of 100mm or 150mm is commonly applied. All our cold room doors are made with the CFC-free insulated PU panel covered with stainless steel or galvanized steel that meet EC/USDA international hygiene standards, they are are available in customized sizes and structure. The outstanding insulation and sealing properties of the PU Panel door makes a contribution to the energy-saving operational of cold rooms and freezer rooms. It has the characteristics of perfect sealing, reliable, safe and easy to operate manual or automatically.
- Excellent thermal insulation.
- Outstanding sealing.
- Reliable structure.
- High quality hardware parts.
- Customized door sizes.
- Adaptive design for varying installation scenarios.
- Easy to operate manual or automatically.
- Fire resistance
- Safe Escape device. when locked inside the cold room, push the escape device ,then you can come out.
Basic Parameters
* Filling: Rigid PU foam
* Opening height: up to 2400 mm
* Opening width: up to 1400 mm
|
Width, mm
|
500-1099
|
1100-1399
|
1400-1949
|
1950-2499
|
2049-2500
|
|
Height, mm
|
The number of fasteners included
|
||||
|
600-1249
|
8
|
9
|
10
|
11
|
12
|
|
1250-1699
|
10
|
11
|
12
|
13
|
14
|
|
1700-2299
|
12
|
13
|
14
|
15
|
16
|
|
2300-2849
|
14
|
15
|
16
|
17
|
18
|
|
2850-3399
|
16
|
17
|
18
|
19
|
20
|
|
3400-3949
|
18
|
19
|
20
|
21
|
22
|
The door filler is rigid PUR polyurethane foam with a density of up to 50 kg / m³. The thermal conductivity coefficient of the door filler PUR 0.022 W / (m * K) allows you to effectively keep warm or cold.

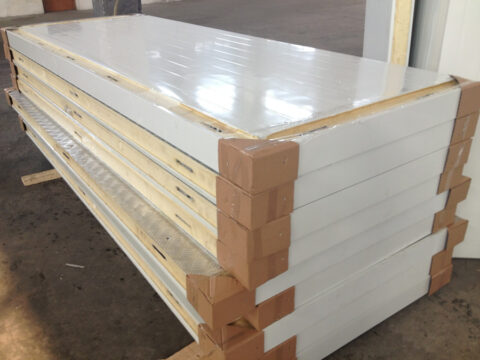

COLD ROOM PU PANEL is also called PU sandwich panel
High quality color Steel fast fit PIR Sandwich Panel for Meat/ Vegetables/ Fruit. PU panel is also called PU sandwich panel, PUR Panel or PUF Panel in which polyurethane foam is been sandwiched between the two outer covers. The CFC-free insulated PU panel is commonly used as the cold storage panels due to its advantageous mechanical, chemical, biological and moisture properties, it is excellent to prevent thermal conductivity, restrain growth of fungi, keep out moisture ingress. We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.

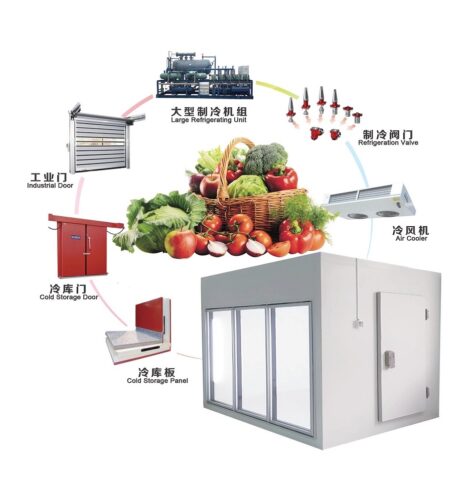

Cold room (also called cool room, chiller room)
Cold room (also called cool room, chiller room) is a walk-in storage facility in controlled condition to keep a consistent temperature, it is widely used to preserve the quality of stored products like fruit, vegetables, beverages, flowers, beef and chicken meat, seafood, medicine, cheese, eggs and other fresh foods. The applications of cold rooms include foods and beverages packaging, short and long term products cold storage as well as blast freezing.
Freezer room (also called blast freezer, shock freezer)
Freezer room (also called blast freezer, shock freezer) is a kind of cold room with lower storage temperature from -40°C to -10°C, it is equipped with more thicker doors, PU panels and more powerful condensing units than cool room. Freezer room addresses cold storage concerns of storing material reliably at consistently low temperature and fast cooling speed, so it can keep such stored products like sea food, meat or ice scream in fresh quality.
