Medical Cold Storage

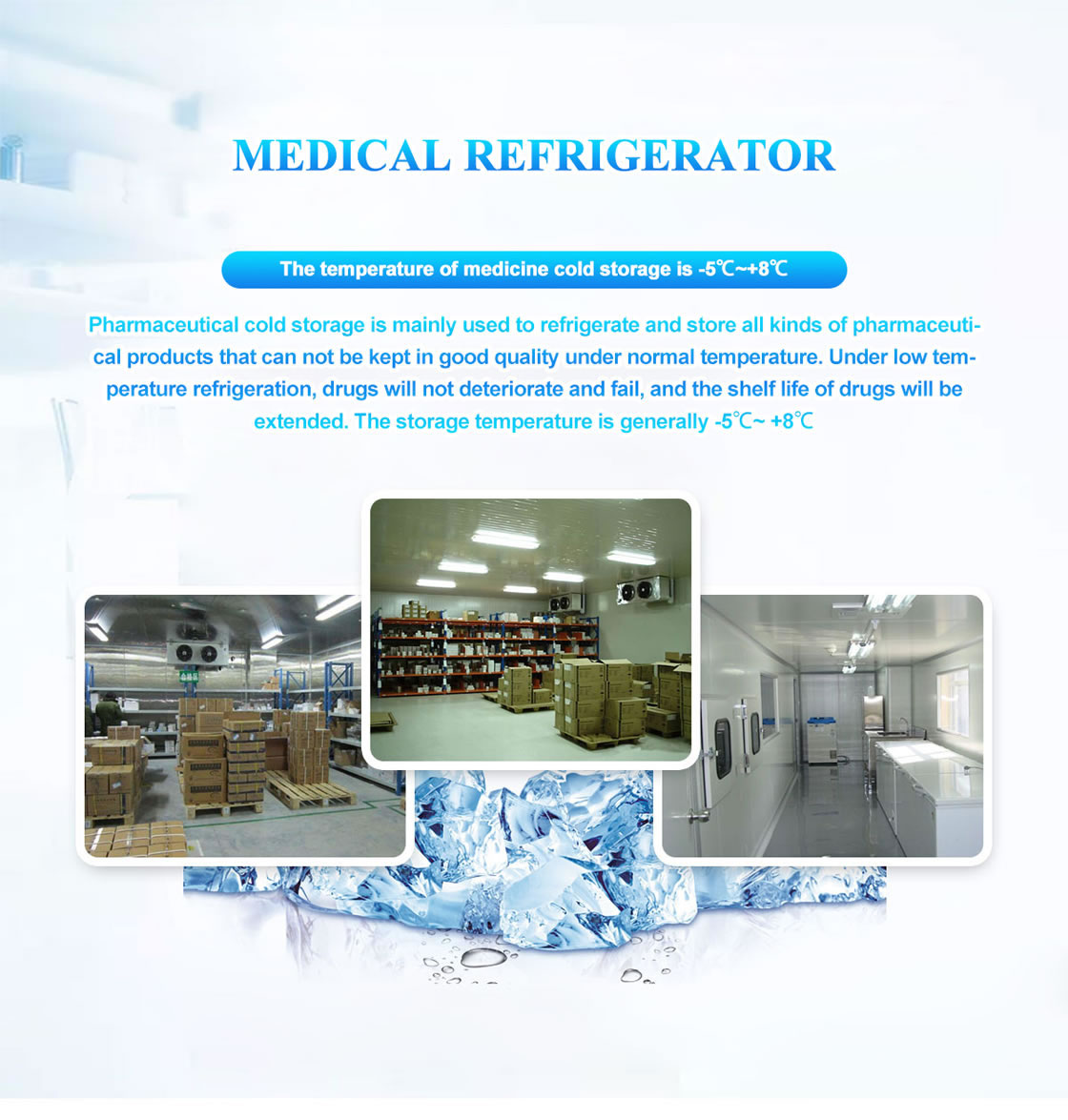

For medicines with quality not preservable under room temperature conditions, refrigerating them at low temperature will retain their quality, keep them effective and extend their shelf life. The sheet material of the medicine cold storage uses modern high-tech flame-retardant insulation materials which has excellent airtightness. CASGYW's medicine cold storage follows design norms and is energy-saving and environmentally friendly.
For medicines with quality not preservable under room temperature conditions, refrigerating them at low temperature will retain their quality, keep them effective and extend their shelf life. The sheet material of the medicine cold storage uses modern high-tech flame-retardant insulation materials which has excellent airtightness. CASGYW’s medicine cold storage follows design norms and is energy-saving and environmentally friendly.

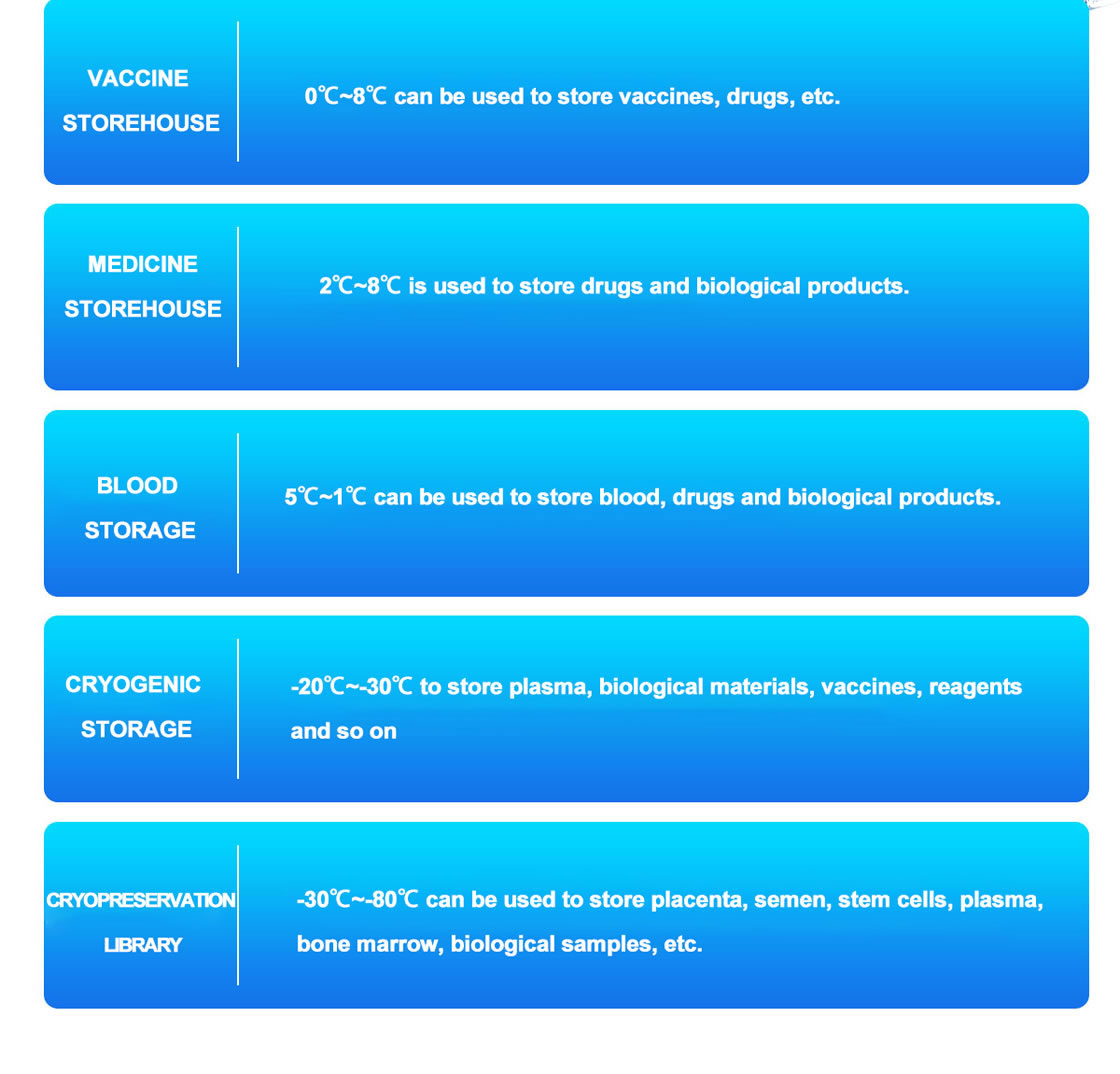

Medicine Cold Storage Types
Vaccine Storage: At 0℃~8℃, it can be used to store vaccines, medicines, etc.
Medicine Storage: At 2℃~8℃, it can be used to store medicine, biological products, etc.
Blood Storage: At 5℃~1℃, it can be used to store blood, pharmaceutical and biological products, etc.
Low-temperature-maintaining Storage: At -20℃~-30℃, it can store blood plasma, biological materials, vaccines, reagents, etc.
Ultra-low-temperature-maintaining Storage: At -30℃~-80℃, it can be used to store placenta, semen, stem cells, blood plasma, bone marrow, biological samples, etc.
Features and Advantages of Installing CASGYW’s Medicine Cold Storage
1. The medicine cold storage designed and installed by CASGYW has many advantages such as storage, quick-freezing, fast fresh-keeping refrigeration, complete functions, energy-saving, etc. and uses the most advanced low-noise evaporative fans to ensure that the lowest energy consumption of the main unit achieves the highest efficiency.

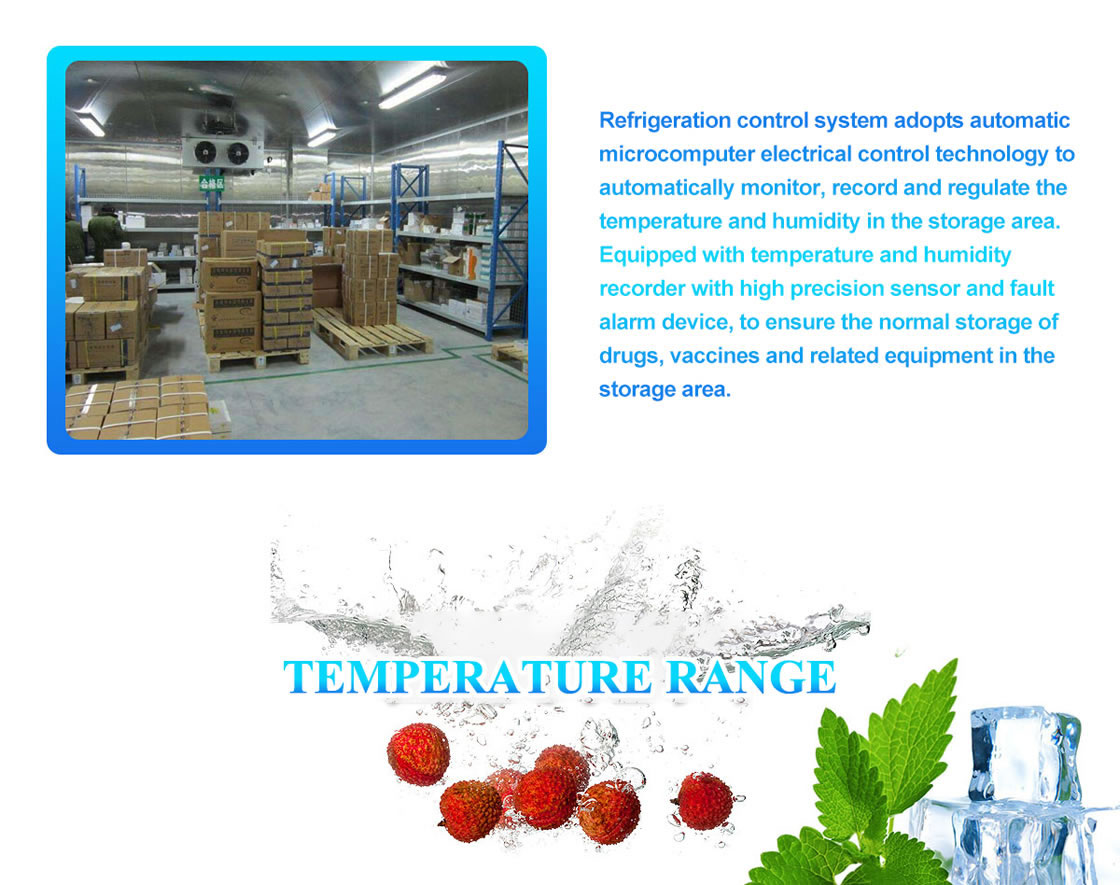

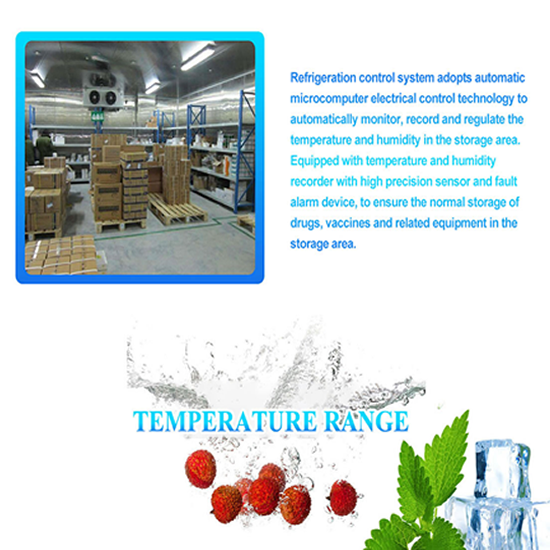

2. For the refrigeration control system, we use fully automated microcomputer electrical control technology that does not require manual operation to monitor and record the temperature and humidity in the storage area. It has intelligent computer temperature control and a temperature and humidity recorder (with alarm device) within the high-precision temperature sensor. The temperature in the warehouse can be set freely within a range of +2℃~+8℃. The fully automated temperature stabilizer and automatic power switch, both of which do not require manual operation, as well as the digital temperature display, ensure the safe storage of goods inside the warehouse. It can also meet long-term monitoring requirements while being used. If it detects that the temperature or humidity has reached the upper or lower limit, the device will light and sound the alarm.

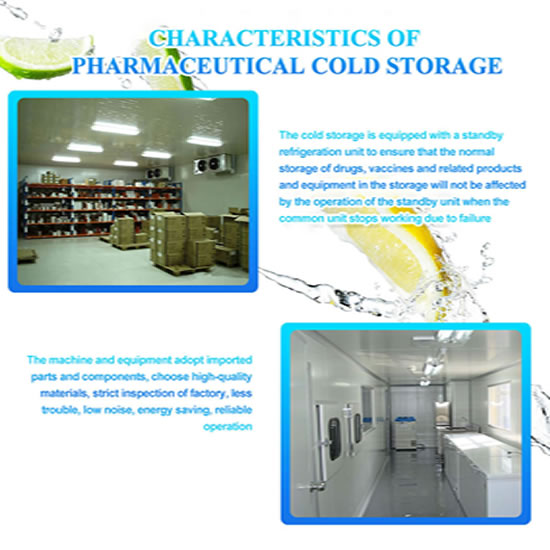

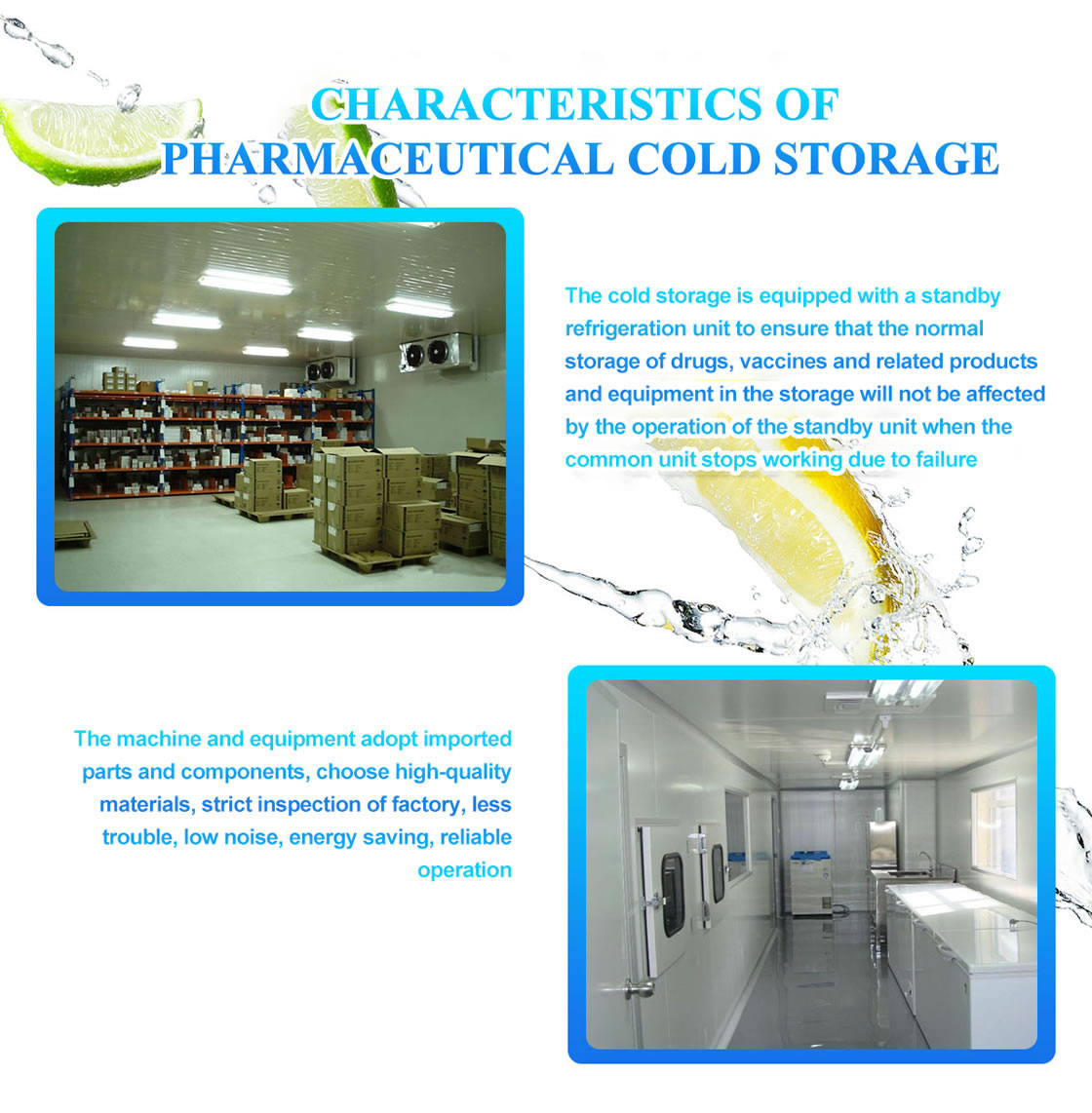

3. The cold storage is equipped with two units to ensure that when the unit commonly used stops working during a breakdown, the operation of the standby unit will not affect medicines, vaccines and related products inside the warehouse.
4. The refrigeration equipment uses imported components and high-quality materials, which are strictly inspected before leaving the factory. It is low-noise, energy-saving and operationally reliable.
5. The control system uses a fully intelligent microcomputer with automatic detection. The high-precision sensor recorder (with alarm device) has an SMS alarm function, monitors and records the temperature and humidity in the storage area and is capable of meeting long-term monitoring requirements. If it detects that the temperature or humidity has reached the set upper or lower limit, the device will light and sound the alarm.
200mm Cold Room Pu Sandwich Panel
ZKGY cold room pu sandwich panel, 50mm, 75mm, 100mm, 120mm, 150mm,180mm and 200mm thickness, 0.3mm to 1mm color plate, 304 stainless steel. The flame retardant grade is B2. PU panel are injected with 100% polyurethane (CFC free) with an average foam-in-place density of 42-44kg/m³.With our cold room panels, you can efficiently insulate your cold room and freezer room.
65CBM small cold room for fruit and vegetable
CASGYW cold rooms are available in a vast range of different sizes and different temperature. The range consists of chillers(-5/5ºC), freezers rooms (-18/-20ºC) and quick freezers(-25/-35ºC). Cold rooms are widely used in food industry(fruit, vegetable, seafood, fish, meat), medical industry, and other related industry.
120mm Cold Room Pu Sandwich Panel
CAS GYW cold room pu sandwich panel, 50mm, 75mm, 100mm, 120mm, 150mm,180mm and 200mm thickness, 0.3mm to 1mm color plate, 304 stainless steel. The flame retardant grade is B2. PU panel are injected with 100% polyurethane (CFC free) with an average foam-in-place density of 42-44kg/m³.With our cold room panels, you can efficiently insulate your cold room and freezer room.
Cold room (also called cool room, chiller room)
Cold room (also called cool room, chiller room) is a walk-in storage facility in controlled condition to keep a consistent temperature, it is widely used to preserve the quality of stored products like fruit, vegetables, beverages, flowers, beef and chicken meat, seafood, medicine, cheese, eggs and other fresh foods. The applications of cold rooms include foods and beverages packaging, short and long term products cold storage as well as blast freezing.
